По-мощен, По-гъвкав, По-усъвършенстван по всякакъв начин

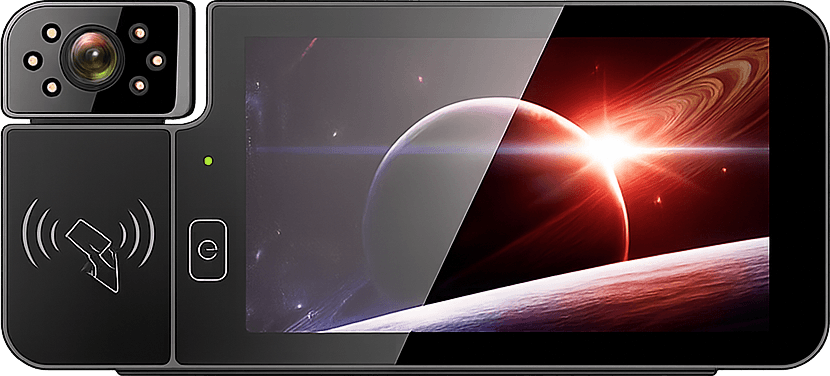

Chainway V600S е новоразработен Android компютър за превозни средства, базиран на Android 5.1 OS. Конфигуриран с многоканална външна камера, събиране на OBD данни, RFID, биометрика и GPS функция, той осигурява ефективно предаване на данни чрез Bluetooth и 4G. V600S може напълно да постигне цялостно управление на училищни автобуси, градски транспорт, туристически автобуси, товарни автомобили, таксита и т.н., идеално осигурявайки безопасността на движението.
Характеристики
5.5'' High-definition Screen
Android 5.1
4G / WiFi / Bluetooth
Функции
IC Card Reading
Face Recognition
Front & Rear Dual Camera
OBD Data Collection
Emergency Alarm
GPS, BeiDou
191mm x 85mm x 52mm / 7.52 x 3.35 x 2.05 in.
5.5″ 720P TFT-LCD capacitive touch panel, 16.7M colors, adjustable backlight brightness
1 slot for SIM card, 1 slot for TF card (Standard SIM)
Micro USB, 2 IO ports reserved, use for low volt. testing and ACC testing
Speaker, microphone; supports voice calls
Touch input
1 power key, 1 reset key
Gravity sensor
IEEE802.11 b/g/n
2G: GPRS (900/1800MHz), 3G: WCDMA B1/B8, 4G: FDD-LTE: B1/B3/B7/B8/B20
2G: GPRS (850/1900MHz), 3G: WCDMA B2/B5, 4G: FDD-LTE: B2/B4/B5/B7/B17
2G: GPRS (850/900/1800/1800MHz), 3G: WCDMA : B1, CDMA EVDD: EVDD Rev.A800MHz, TD-SCDMA: B34/B39, 4G: TDD-LTE: B38/B39/B40/B41, FDD-LTE: B1/B3
Bluetooth 4.0
GPS, A-GPS, BeiDou (optional)
Android 5.1
Chainway Software Development Kit
Java
Eclipse/Android Studio
CPU: Qualcomm 1.3 GHz quad-core RAM+ROM: 2GB + 16GB
CPU: Qualcomm 1.3 GHz quad-core RAM+ROM: 1GB + 8GB
TF card, supports up to 32GB
9V-36V, supports 3-4 seconds power-off time delay
-4°F to 122°F / -20℃ to 50℃
-40°F to 158°F / -40°C to 70°C
5%RH - 95%RH non condensing
±8KV air discharge, ±4KV conductive discharge
100W, angle-adjustable, supports infrared, backlight compensation and autobalance
800W, supports photos and videos, Resolution: 320 x 240, 640 x 480, 1280 x 720, FpsYUY2: 720p/15fps, VGA/30fps, CIF/30fps, MJPEG: 720p/30fps, VGA/60fps, CIF/60fps
Rear camera is optional
NXP
13.56MHz
ISO14443A/B, 15693
1) MF1 card (S50/S70), MF0 (Ultra light), MF3 (Desfire D40/D41/D81), CPU_A card, 2) CPU_B card, 3) Others for customization
2cm-8cm
OBDII, ISO9141-2, ISO14230(KWP), ISO15765(CANBUS)
