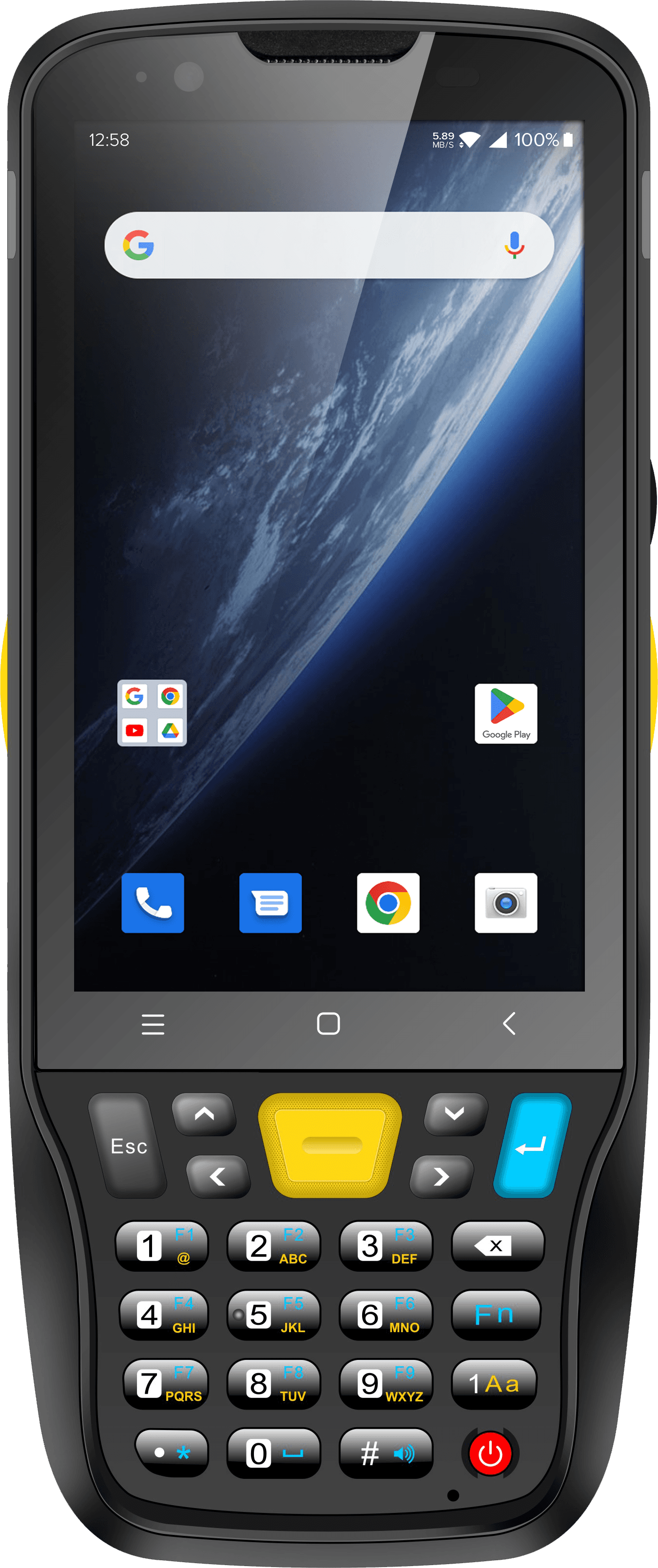

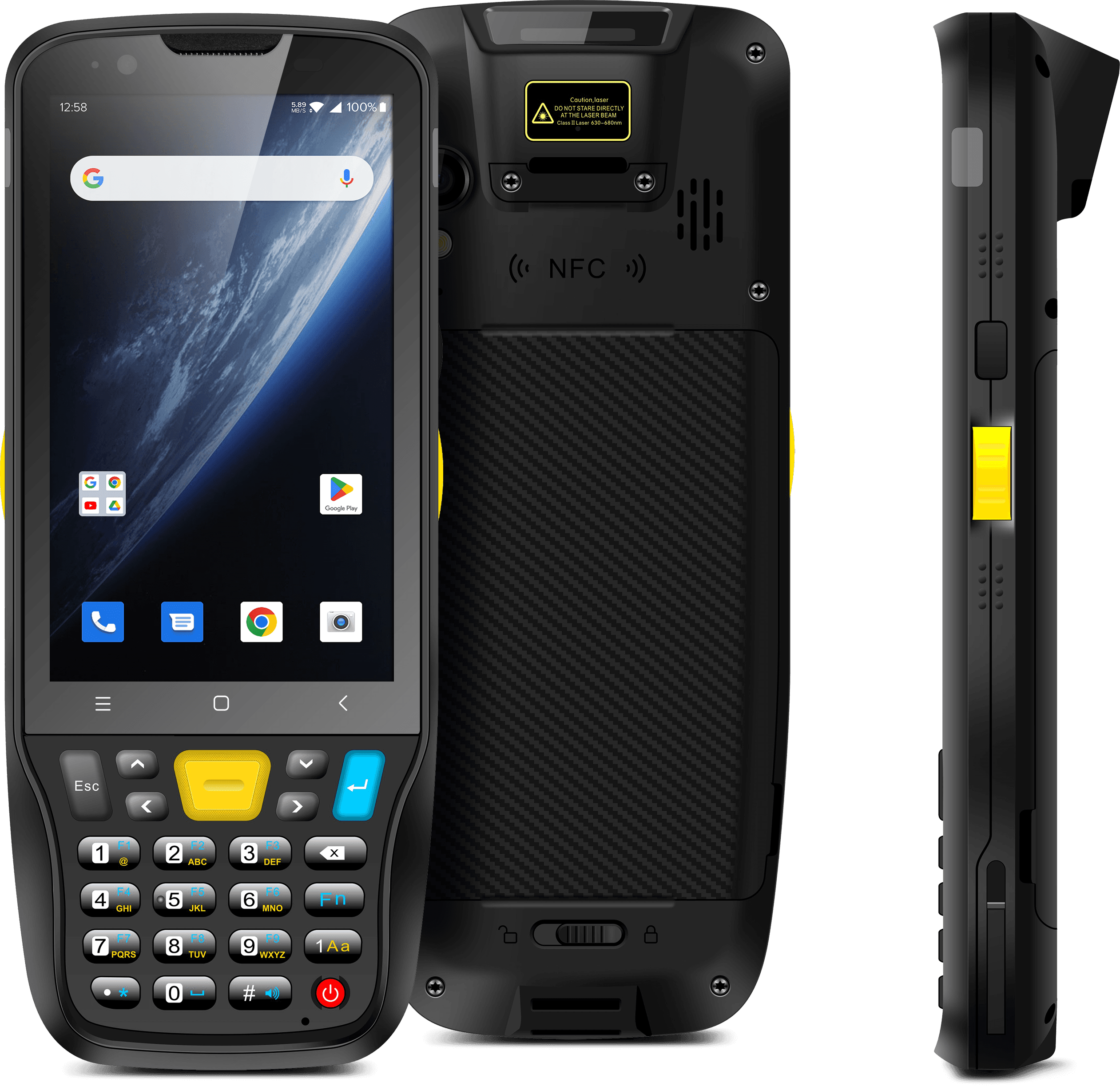

Chainway MC62 Mobile Computer (Android 13)

Chainway MC62 Mobile Computer (Android 13)

More Powerful, More Extensible, More Advanced in Every Way

Chainway MC62 is a lightweight and portable high-performance mobile computer. With Android 13, octa-core processor, 4-inch touchscreen and 5000mAh removable battery, the excellent configuration delivers highly efficient operation. It supports barcode scanning, NFC, 13MP camera, multiple wireless connections, and features IP67 protection rating, 1.5 meters drop resistance. The mobile computer is thus widely applicable in various fields including warehousing, logistics, retail, finance, transportation, and manufacturing, helping users significantly improve work efficiency.

Get QuoteSpecifications
image 1

More Advanced Android OS, More Flexible Keyboard Design, Stronger Protection Level and Battery Life

Features

  • Android 13

  • High-Performance Octa-Core 2.0GHz

  • Only 256g

  • Optimized Button Layout

  • One-Hand Operation

  • 5000mAh Removable Battery

  • IP67 & 1.5m / 5ft. Drop

  • Optional Handle

Functions

  • Powerful Barcode Scanning

  • Front and Rear Cameras, NFC, and More

SPECIFICATIONS

Physical Characteristics

Dimensions

163.5 x 67.0 x 17.1mm/6.44 x 2.64 x 0.67in

Weight

256g / 9.03oz (device with battery)

Display

4-inch, 480 x 800

Touch Panel

Multi-touch panel, gloves and wet hands supported

Power

5000mAh removable battery, support quick charge

Notification

Sound, LED indicator, vibrator

Expansion Slot

1 slot for SIM card, 1 slot for SIM or TF card

Interfaces

USB Type-C, USB 2.0, OTG

Audio

2 microphones, 1 for noise reduction, back; 1 speaker; receiver

Keypad

Main keypad, 2 scan keys, multi-function keys

Sensors

Gravity sensor, distance sensor, light sensor; Gyroscope (optional), geomagnetic sensor (optional)

Communication

WLAN

802.11d/e/h/i/j/k/r/v/w with companion D-die, Dualband( 2.4GHz and 5GHz) single stream 802.11 a/b/g/n/ac RF, 20/40/80MHz bandwidth, 5G PA

WWAN

2G: GSM (B2 / B3 / B5 / B8), 3G: WCDMA (B1 / B2 / B4 / B5 / B8), TD-SCDMA (B34 / B39), 4G: FDD-LTE (B1 / B2 / B3 / B4 / B5 / B7 /B8 / B12 / B17 / B20 / B28A / B28B), TDD-LTE (B34 / B38 / B39 / B40 / B41)

Bluetooth

Bluetooth 5.0

Vo-LTE

Support

GNSS

GPS/AGPS, GLONASS, BeiDou, Galileo

Developing Environment

Operating System

Android 13; GMS

SDK

Chainway Software Development Kit

Language

Java

Tool

Eclipse / Android Studio

Performance

CPU

Octa-core, 2.0GHz

RAM+ROM

4GB + 64GB

Expansion

Supports up to 256GB Micro SD (TF) card

User Environment

Operating Temp.

-4 °F to 122 °F / -20 °C to 50 °C

Storage Temp.

-40 °F to 158 °F / -40 °C to 70 °C

Humidity

5% RH - 95% RH non condensing

Drop Specification

Multiple 1.5 m / 4.9 ft. drops to the concrete across the operating temperature range

Tumble Specification

1000 x 0.5 m / 1.64 ft. falls at room temperature

Sealing

IP67 per IEC sealing specifications

ESD

±15 KV air discharge, ±8 KV conductive discharge

Barcode Scanner

2D Scanner

Zebra: SE4710; CM60

1D Symbologies

UPC / EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS etc.

2D Symbologies

PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX) etc.

Note

*This function is optional

Camera

Front Camera

5MP

Rear Camera

13MP Autofocus with flash

NFC

Frequency

13.56 MHz

Protocol

ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.

Chips

M1 card (S50, S70), CPU card, NFC tags, etc.

Range

2-4 cm
