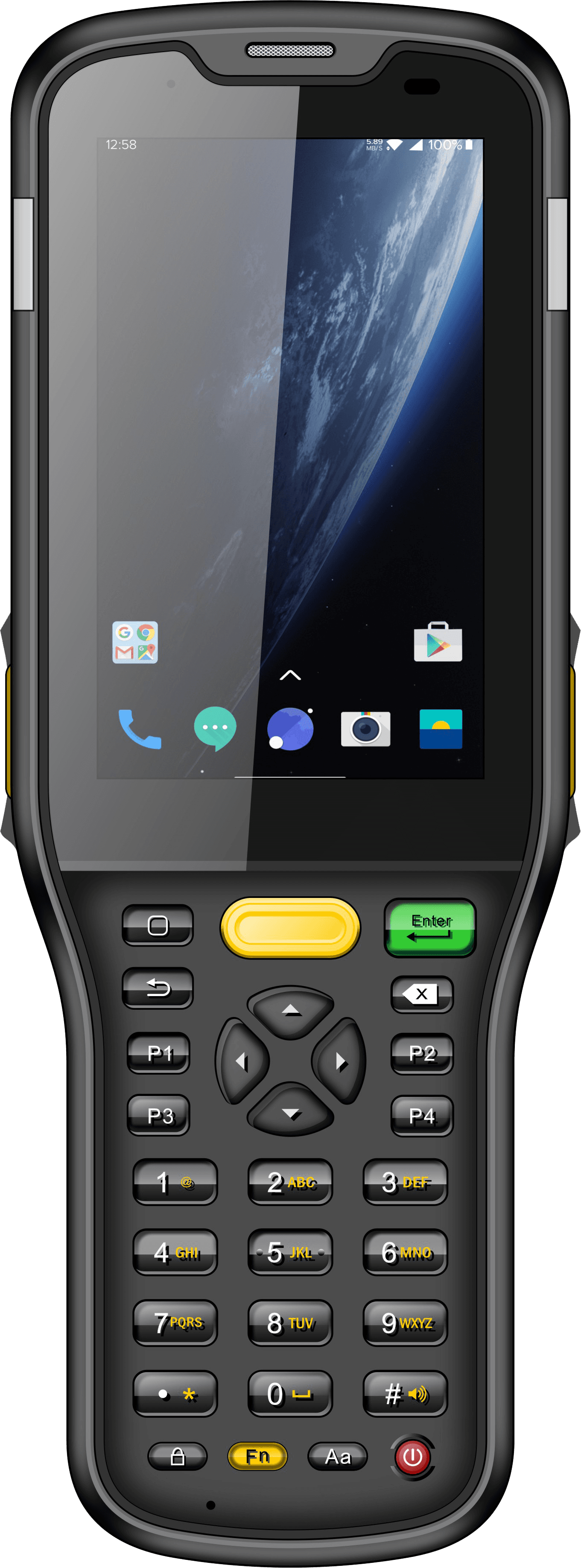

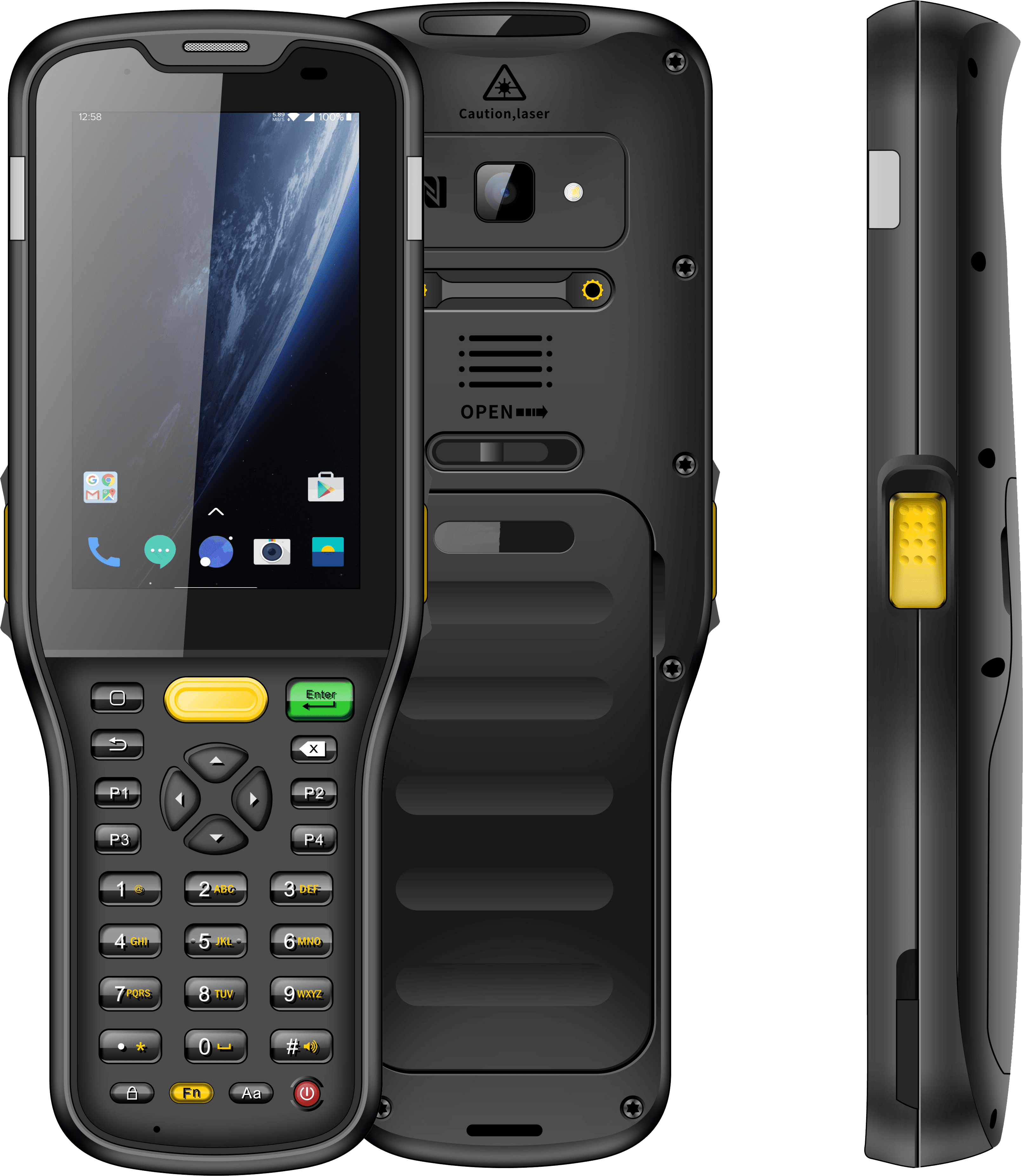

Chainway MC21 Mobile Computer (Android 12)

Chainway MC21 Mobile Computer (Android 12)

More Powerful, More Extensible, More Advanced in Every Way

Chainway MC21 is a lightweight and portable mobile computer with keyboard. With Android 12, high-performance processor, 3.5-inch touchscreen, multi-function keyboard, and 5000mAh removable battery, the excellent configuration delivers highly efficient operation. It supports barcode scanning, NFC, 13MP camera, multiple wireless connections, and features high protection rating. The mobile computer is thus widely applicable in various fields including warehousing, logistics, retail, and asset management.

Get QuoteSpecifications
image 1

Easier to Use, More Cost-Effective, Rugged and Durable

Features

  • Lightweight Narrow-Edge Design

  • One-Hand Operation

  • Optimized Button Layout

  • 5000mAh Removable Battery

  • IP65 & 1.5m / 5ft. Drop

Functions

  • Powerful Barcode Scanning

  • NFC, 13MP HD Camera, and More

SPECIFICATIONS

Physical Characteristics

Dimensions

186.6 x 66.7 x 24.3mm / 7.35 x 2.63 x 0.96in

Weight

287g / 10.05oz (device with battery)

Display

3.5-inch, 480 x 800 resolution

Battery

5000mAh removable main battery, support quick charge

Touch Panel

Multi-touch panel, gloves and wet hands supported

Notification

Sound, LED indicator, vibrator

Interfaces

USB 2.0 Type-C, OTG, supports Type-C headphones

Card Slot

1 slot for Micro SIM card, 1 slot for Nano SIM or TF card

Audio

2 Microphones: 1 for noise reduction on the back and 1 speaker; Receiver

Keypad

Left and Right Scan Keys + Main Keyboard

Sensors

Gravity sensor, proximity sensor, light sensor

Communication

WLAN

802.11d/e/h/i/j/k/r/v/w with companion D-die, Dualband( 2.4GHz and 5GHz) single stream 802.11 a/b/g/n/ac RF, 20/40/80MHz bandwidth, 5G PA

WWAN

2G: GSM: B2/B3/B5/B8, 3G: WCDMA: (B1/B2/B4/B5/B8), TD-SCDMA (B34 / B39), 4G: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A/B28B/B38/B39/ B40/B41

Bluetooth

Bluetooth 5.0

Vo-LTE

Support Vo-LTE HD video voice call

GNSS

Integrate GPS, Beidou, GLONASS and Galileo, Support AGPS

Developing Environment

Operating System

Android 12; GMS

SDK

Chainway Software Development Kit

Language

Java

Tool

Eclipse / Android Studio

Performance

CPU

Quad-core, 2.0GHz

RAM+ROM

3GB + 32GB

Expansion

Supports up to 256GB Micro SD (TF) card

User Environment

Operating Temp.

-4℉ to 122℉ / -20℃ to 50℃

Storage Temp.

-40℉ to 158℉ / -40℃ to 70℃

Humidity

5%RH to 95%RH (non condensing)

Drop Specification

Multiple 1.5m / 4.9ft. drops to the concrete across the operating temperature range

Tumble Specification

1000 x 0.5m / 1.64ft. falls at room temperature, meets IEC rolling specification

Sealing

IP65 per IEC sealing specifications

ESD

± 15KV air discharge, ± 8KV conductive discharge

Barcode Scanner

2D Scanner

Zebra: SE4710; CM60

1D Symbologies

UPC / EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS etc.

2D Symbologies

PDF417, Micro PDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX) etc.

Note

* This function is optional

Camera

Rear Camera

Rear 13 MP Autofocus with flash

NFC

Frequency

13.56 MHz

Protocol

ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.

Chips

M1 card (S50, S70), CPU card, NFC tags, etc.

Range

2 - 4cm

Optional Accessories

Accessories

USB Cable; Adapter; Charging Cradle, etc.

Accessory Note

*See details in Accessory Guide
