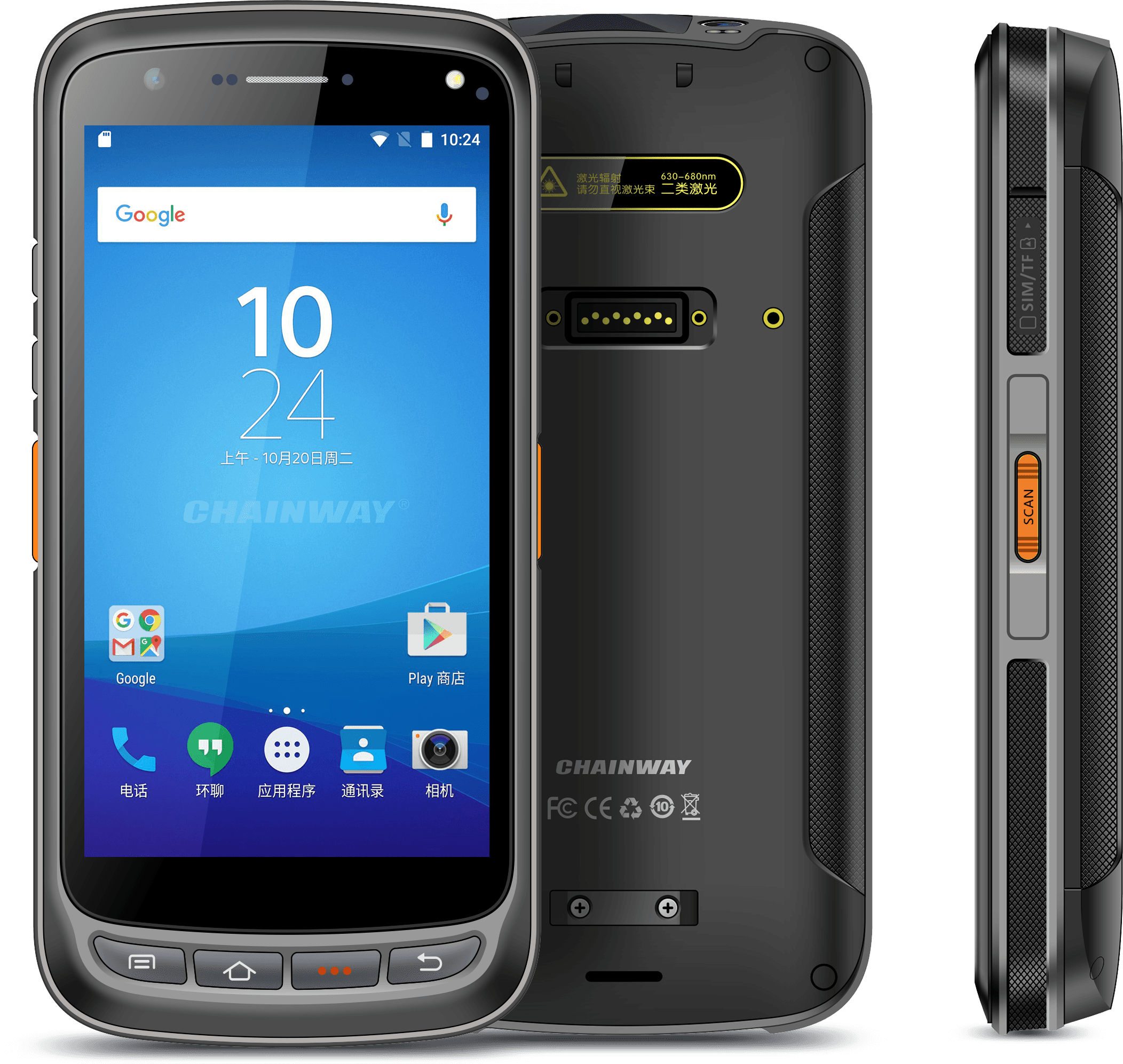

Chainway C72 Mobile Computer (Android 11/13)

More Powerful, More Extensible, More Advanced in Every Way

Chainway C72 is an industrial-grade Android mobile computer. With an in-build Zebra scan engine, the device ensures powerful barcode scanning performance that can accurately & quickly read various Symbologies of 1D/2D barcode labels even if the barcode is dirty, damaged, or wrinkled. In addition, C72 features Android 11/13 OS, Octa-core processor, 8000mAh powerful battery, 13 MP camera, and optional NFC reading. The device is perfectly suitable for various applications in power inspection, asset management, retail, warehousing, logistics, finance & manufacturing industries, etc.

Get Quote Specifications

Ultimate Barcode Scanning, Powerful Battery, Easy to Hold

Features

High-Performance Octa-Core 2.3GHz
Android 13/11
8000mAh Powerful Battery
IP67 & 1.5m / 5ft. Drop

Functions

Powerful Barcode Scanning
Camera, NFC, and More

SPECIFICATIONS

Physical Characteristics

Dimensions

164.2 x 80.0 x 24.3 mm / 6.46 x 3.15 x 0.96 in.

Weight

654 g / 23.07 oz.

Display

5.2'' IPS LTPS 1920 x 1080

Touch Panel

Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported

Power

Main battery: Li-ion, rechargeable, 8000 mAh Standby: over 500 hours Continuous use: over 12 hours (depending on user environment) Charging time: 3-4 hours (with standard adaptor and USB cable)

Notification

Sound, LED indicator

Expansion Slot

1 slot for Nano SIM card, 1 slot for Nano SIM or TF card

Interfaces

USB 2.0 Type-C, OTG, Type-C headphones supported

Audio

1 microphone；1 speaker；receiver

Keypad

4 front keys, 1 power key, 2 scan keys, 1 multifunctional key

Sensors

Light sensor, proximity sensor, gravity sensor

Communication

WLAN

IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna

WWAN

2G: GSM850/GSM900/DCS1800/PCS1900, 3G: WCDMA：B1/B2/B4/B5/B8, CDMA2000 EVDO: BC0, TD-SCDMA：A/F, 4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A, B28B/B34/B38/B39/B40/B41

WWAN (Others)

Depending on the country's ISP

Bluetooth

Bluetooth 5.0

GNSS

GPS/AGPS, GLONASS, BeiDou; internal antenna

Note

*Chainway C72 models being manufactured for Turkish Market, do not include Voice Call (Phone Call) function. WAN module included on those models only support DATA transfer.

Developing Environment

Operating System

Android 11/13; GMS, FOTA, Soti MobiControl, SafeUEM supported.

SDK

Chainway Software Development Kit

Language

Java

Tool

Eclipse / Android Studio

Performance

CPU

Octa-core, 2.3GHz

RAM+ROM

3GB + 32GB, 4GB + 64GB (optional)

Expansion

Supports up to 256GB Micro SD (TF) card

User Environment

Operating Temp.

4 °F to 122 °F / -20 °C to 50 °C

Storage Temp.

-40 °F to 158 °F / -40 °C to 70 °C

Humidity

5% RH - 95% RH non condensing

Drop Specification

Multiple 1.5 m / 4.9 ft. drops (at least 20 times) to the concrete across the operating temperature range

Tumble Specification

1000 x 0.5 m / 1.64 ft. falls at room temperature

Sealing

Host IP65 per IEC sealing specifications

ESD

±15 KV air discharge, ±6 KV conductive discharge

Barcode Scanner

1D Linear Scanner

Honeywell: N4313

2D Imager Scanner

Zebra: SE4710 / SE4750SR / SE4750MR / SE4750DP; Honeywell: N6603; CM60

1D Symbologies

UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.

2D Symbologies

PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.

Note

*This function is optional

Camera

Camera

13 MP Autofocus with flash

NFC

Frequency

13.56 MHz

Protocol

ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.

Chips

M1 card (S50, S70), CPU card, NFC tags, etc.

Range

2-4 cm
