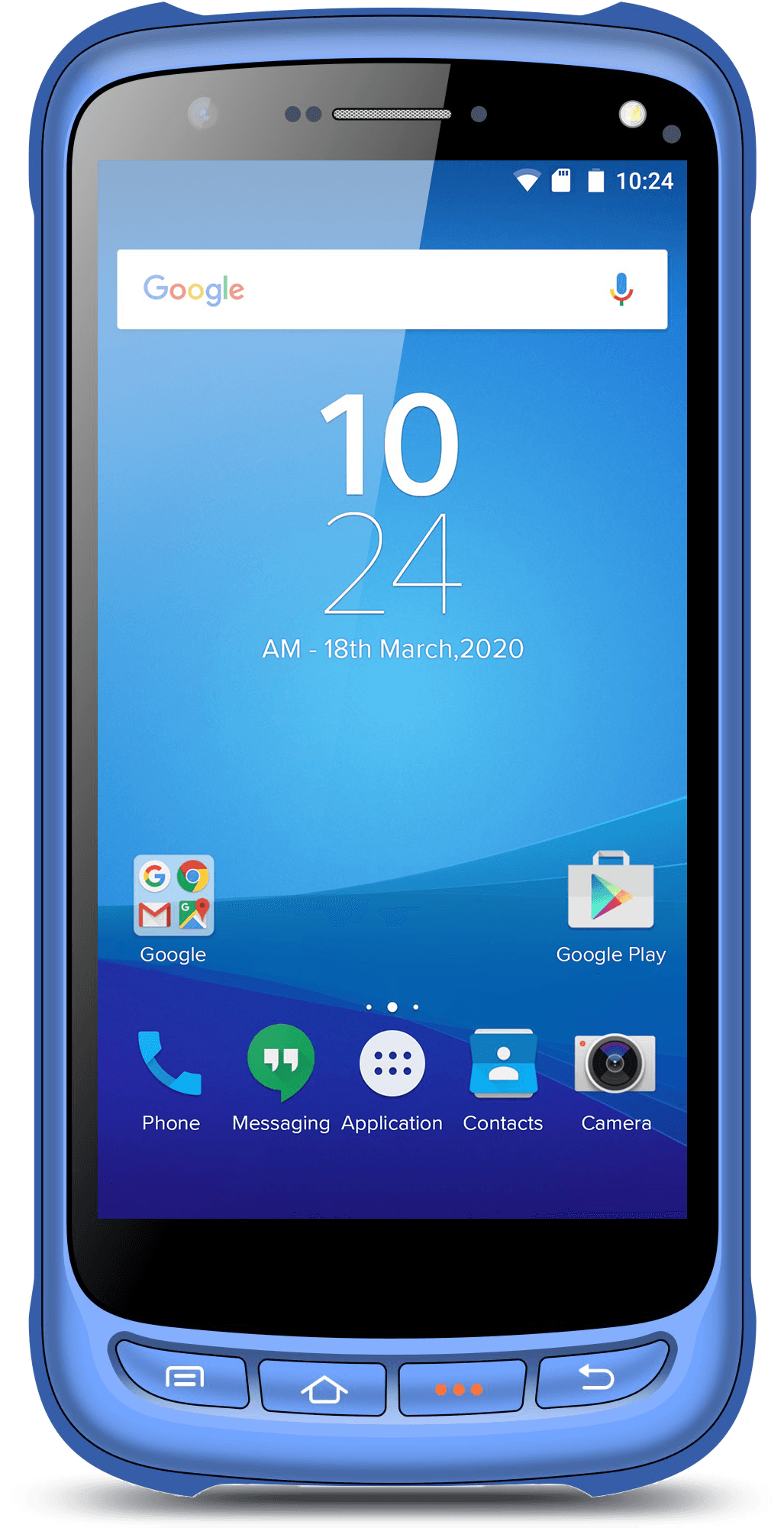

Chainway C70 Mobile Computer with Thermometer

More Powerful, More Extensible, More Advanced in Every Way

Chainway C70 THERMO is a high-performance handheld computer specially developed for temperature measurement. Based on Android 11 and Octa-core processor, it features first-class configuration and fast processing. With integrated infrared temperature measurement module, the device supports non-contact temperature measurement of human forehead and object, and can be widely used in various temperature measurement scenarios.

Get Quote Specifications

Enable Non-contact Temperature Measurement

Features

Android 11
5.2'' IPS 1080P Screen
4000mAh Battery
1.8m Drop Proof / IP65 Sealing

Functions

Temperature Measurement
Barcode, NFC, Camera and More

SPECIFICATIONS

Physical Characteristics

Dimensions

163.8*79.2*13.8 mm / 6.45*3.12*0.54 in.

Weight

< 242 g / 8.5 oz.

Display

5.2'' IPS LTPS 1920 x 1080

Touch Panel

Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported

Power

Main battery: Li-ion, rechargeable, 4000mAh Standby: over 300 hours Continuous use: over 12 hours (depending on user environment) Charging time: 2-3 hours (with standard adaptor and USB cable)

Notification

Sound, LED indicator, vibrator

Expansion Slot

1 slot for Nano SIM card, 1 slot for Nano SIM or TF card

Interfaces

USB2.0 Type-C, OTG

Audio

2 microphones，1 for noise cancellation；1 speaker；receiver

Keypad

4 front buttons, 1 side button, 2 scan keys, 1 multifunctional key

Sensors

Light sensor, proximity sensor, gravity sensor

Communication

WLAN

IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna

WWAN

2G: GSM850/GSM900/DCS1800/PCS1900 3G: WCDMA：B1/B2/B4/B5/B8 CDMA2000 EVDO: BC0 TD-SCDMA：A/F 4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A B28B/B34/B38/B39/B40/B41

WWAN (Others)

Depending on the country's ISP

Bluetooth

Bluetooth 5.0

GNSS

GPS/AGPS, GLONASS, BeiDou; internal antenna

Developing Environment

Operating System

Android 11.0; SafeUEM supported. Committed support for a future upgrade to Android 12, 13, and Android 14 pending feasibility

SDK

Software Development Kit

Language

Java

Tool

Eclipse / Android Studio

Performance

CPU

Octa-core, 2.3GHz

RAM+ROM

3GB + 32GB / 4GB + 64GB

Expansion

Supports up to 256GB Micro SD (TF) card

User Environment

Operating Temp.

-4°F to 122°F / -20°C to 50°C

Storage Temp.

-40°F to 158°F / -40°C to 70°C

Humidity

5%RH - 95%RH non condensing

Drop Specification

Multiple 1.8 m / 5.9 ft. drops (at least 20 times) to the concrete across the operating temperature range

Tumble Specification

1000 x 0.5 m / 1.64 ft. falls at room temperature

Sealing

IP65 / IP67 per IEC sealing specifications

ESD

±15 KV air discharge, ±6 KV conductive discharge

Barcode Scanner

2D Imager Scanner

Zebra SE4710 / Honeywell N6603

1D Symbologies

UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.

2D Symbologies

PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.

Note

*This function is optional

Camera

Camera

13MP autofocus rear camera with flash, optional 5MP front camera

Note

*Front Camera is optional

NFC

Frequency

13.56MHz

Protocol

ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.

Chips

M1 card (S50, S70), CPU card, NFC tags, etc.

Range

2-4cm

Temperature Collection

Measure Position

Human forehead / Object surface

Measure Method

Non-contact / Infrared

Measure Distance

1-3 cm

Measure Range

Human forehead: 32°C to 42.9°C; Object surface: -40°C to 115°C;

Measure Accuracy

Human forehead: ±0.2°C; Object surface: ±0.5°C;

Measure Duration

≤1S

Spectral Range

5.5 -15 μm

Resolution

0.02°C

Note

*The infrared module has 80 degrees limitation, the best measure angle should be in this range.
