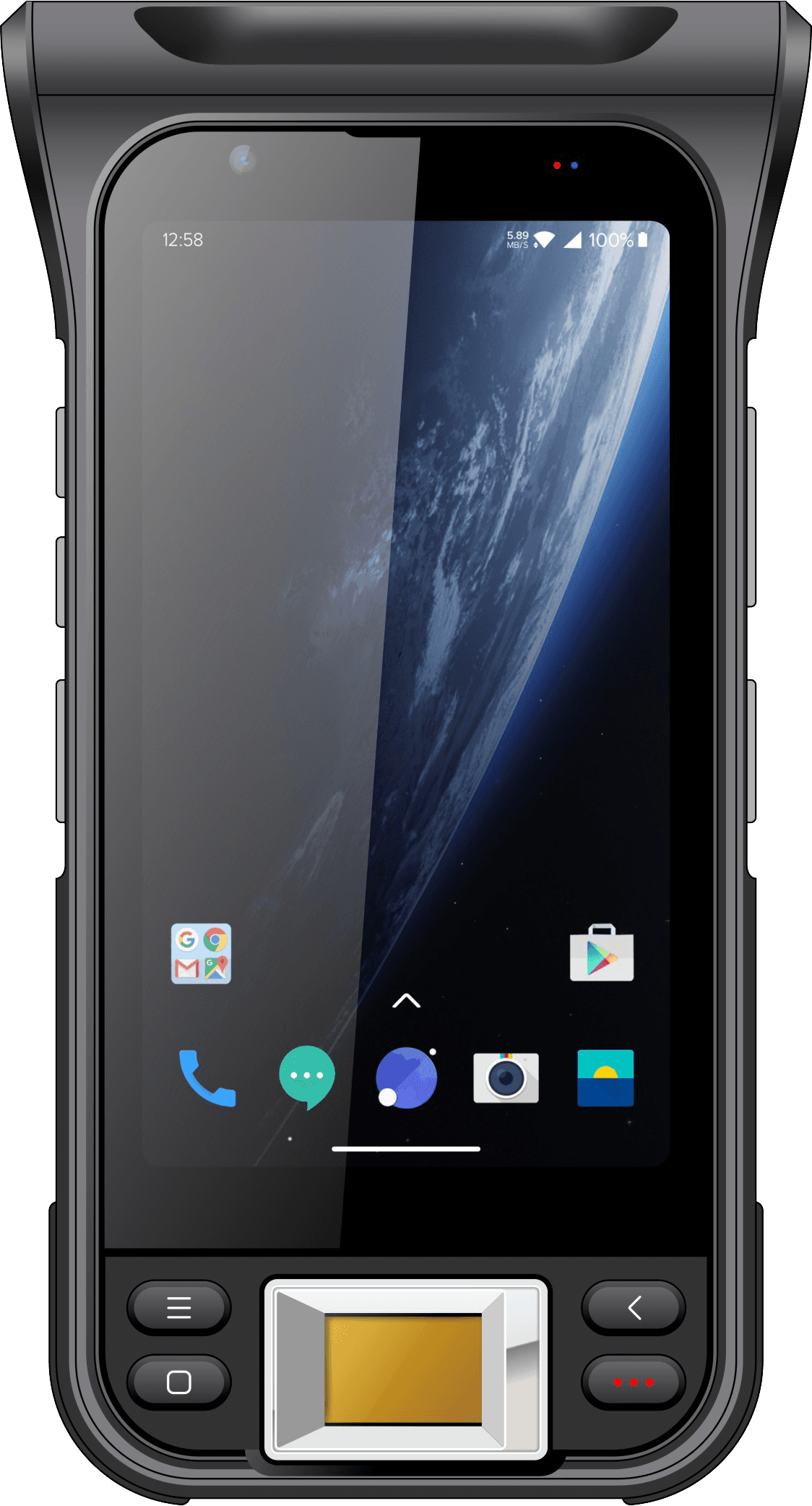

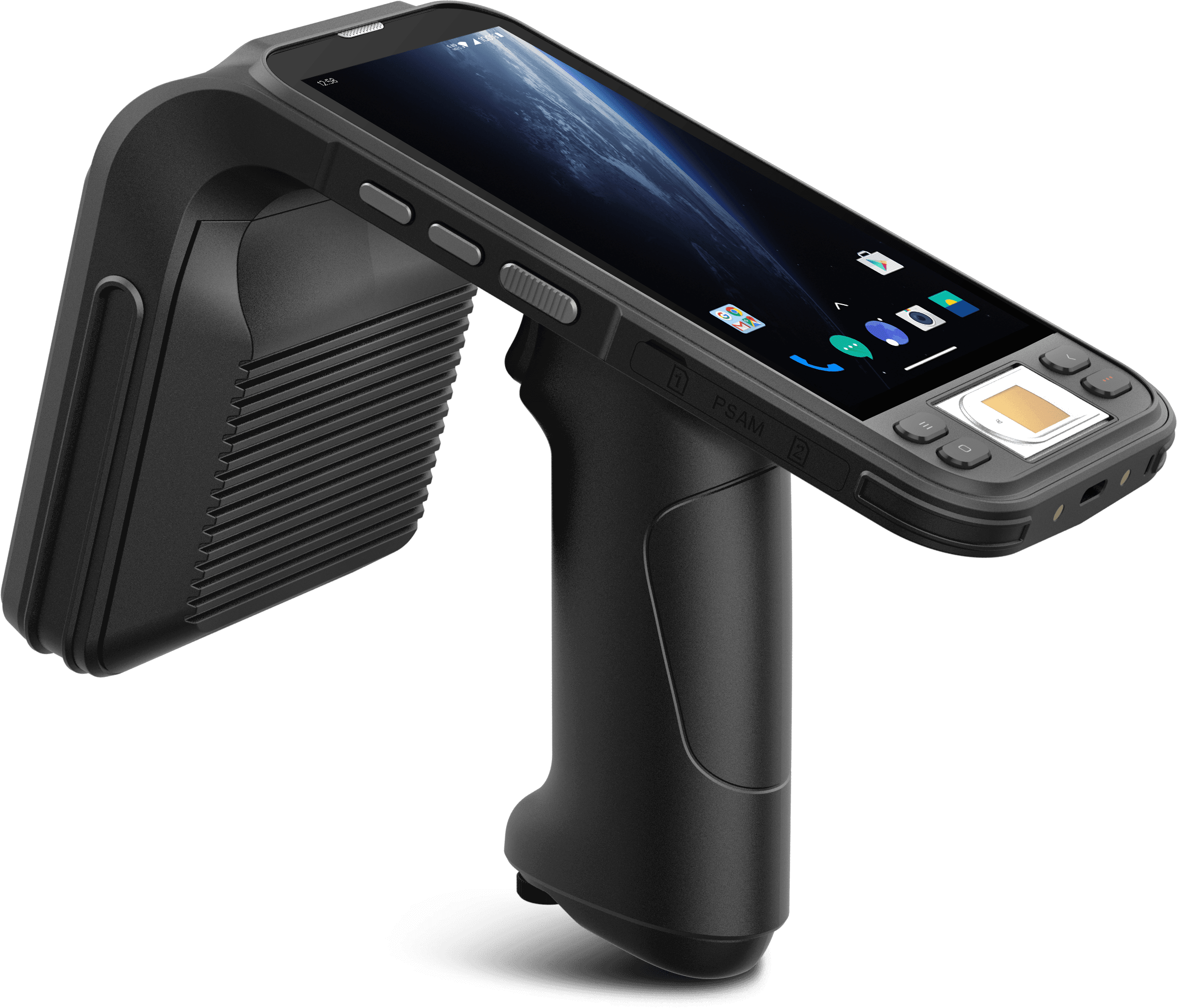

Chainway C5 Fingerprint Scanner (Android 11/13)

More Powerful, More Extensible, More Advanced in Every Way

Chainway C5 is an UHF RFID Reader with enhanced security. Developed based on Android 11/13, the device is equipped with Octa-core CPU, large memory, and 6700mAh/13400mAh removable battery to achieve both efficient operation and long-lasting battery life. While integrating powerful UHF RFID (supports Impinj Gen2X), fingerprint recognition and dual PSAM card slots in the same device, C5 supports barcode scanning, NFC, dual camera and other functions to better meet the high security needs in the fields of banking, public security, etc.

Get Quote Specifications

Superior UHF Performance, Enhanced Security, More Ruggedness

Features

Integrated Design
High-Performance Octa-Core 2.3GHz
700mAh / 13400mAh Removable Battery, Supports Fast Charging & Hot Swapping
IP65 & 1.5m / 5ft. Drop

Functions

Precise Fingerprint Recognition
Self-Developed Module Based on Impinj E710
Impinj Gen2X for Enhanced UHF Performance
1300+ Tags/s Read Rate, 30m+ / 100ft.+ Read Range
Barcode Scanning, NFC, PSAM, and More

SPECIFICATIONS

Physical Characteristics

Dimensions

177.0 x 80.2 x 14.8mm / 6.97 x 3.15 x 0.58in

Weight

626g / 22.08oz. (device with battery)

Display

5-inch (Fingerprint) 1280 x 720

Touch Panel

Multi-touch panel, gloves and wet hands supported; Corning Gorilla Glass

Power

6700mAh / 13400mAh removable pistol battery, Built in 100mAh backup battery, supporting battery hot swap

Notification

Sound, LED indicator, vibrator

Interfaces

USB 2.0 Type-C, OTG, Type-C headphones supported

Card Slot

2 slots for PSAM card (optional); 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card

Audio

1 microphone; 1 speakers; 1 receiver

Keypad

1 power key, 2 scan keys, 1 user-defined key, 2 volume keys (+/-)

Sensors

Gravity sensor, proximity sensor, light sensor, geomagnetic sensor (optional), gyroscope (optional)

Communication

WLAN

802.11 a / b / g / n / ac, 2.4G / 5G dual-band

WWAN

2G: GSM (B2 / B3 / B5 / B8), 3G: WCDMA (B1 / B2 / B4 / B5 / B8), CDMA2000 ECDO: BC0, 4G: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B17 / B20 / B28A / B28B / B38 / B39 / B40 / B41

Bluetooth

5.0

Vo-LTE

Support

GNSS

GPS / AGPS, GLONASS, BeiDou, Galileo

Developing Environment

Operating System

Android 11/13

SDK

Chainway Software Development Kit

Language

Java

Tool

Eclipse / Android Studio

Performance

CPU

Octa-core, 2.3GHz

RAM+ROM

3GB + 32GB, 4GB + 64GB (Optional), 6GB + 128GB (Optional)

Expansion

Supports up to 256GB Micro SD (TF) card

User Environment

Operating Temp.

-20 °C to 50 °C / 4 °F to 122 °F

Storage Temp.

-40 °C to 70 °C / -40 °F to 158 °F

Humidity

5% RH - 95% RH (non condensing)

Drop Specification

Multiple 1.5m / 4.9ft. drops to the concrete across the operating temperature range

Tumble Specification

1000 x 0.5m / 1.64 ft. falls at room temperature

Sealing

IP65 per IEC sealing specifications

ESD

±15KV air discharge, ±8KV conductive discharge

Barcode Scanner

2D Imager Scanner

CM60; Zebra: SE4710

1D Symbologies

UPC / EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS etc.

2D Symbologies

PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX) etc.

Note

*This function is optional

UHF RFID

Engine

CM710-1 module based on Impinj E710, CM2000-1 module based on Impinj Indy R2000

Frequency

865-868MHz / 920-925MHz / 902-928MHz

Impinj Gen2X

Supported

Protocol

EPCglobal Gen 2 (ISO18000-6C)

Antenna

Circular polarization; 5dBic

Output Power

1W (30dBm, +5dBm to +30dBm adjustable), 2W Optional (33dBm, for Latin America, etc.)

Fastest Read Rate

1300+ tags / sec (Circular Polarized)

Max Read Range

30m (Impinj MR6 tag, size 70 x 15mm), 32m (Impinj M750 tag, size 70 x 15mm), 33m (Alien H3 Anti-Metal tag, size 130 x 42mm)

Note

* Ranges and rates depend on tags and environment

Fingerprint Recognition

Fingerprint

TLK1NC02

Camera

Front Camera

5MP

Rear Camera

Rear 13MP Autofocus with flash

NFC

Frequency

13.56MHz

Protocol

ISO14443A / B, ISO15693, NFC-IP1, NFC-IP2 Impinj Protected Mode Supported etc.

Chips

M1 card (S50, S70), CPU card, NFC tags etc.

Range

2-4cm

Note

* This function is optional
