Chainway P80 RFID Tablet (Android 13)

More Powerful, More Extensible, More Advanced in Every Way

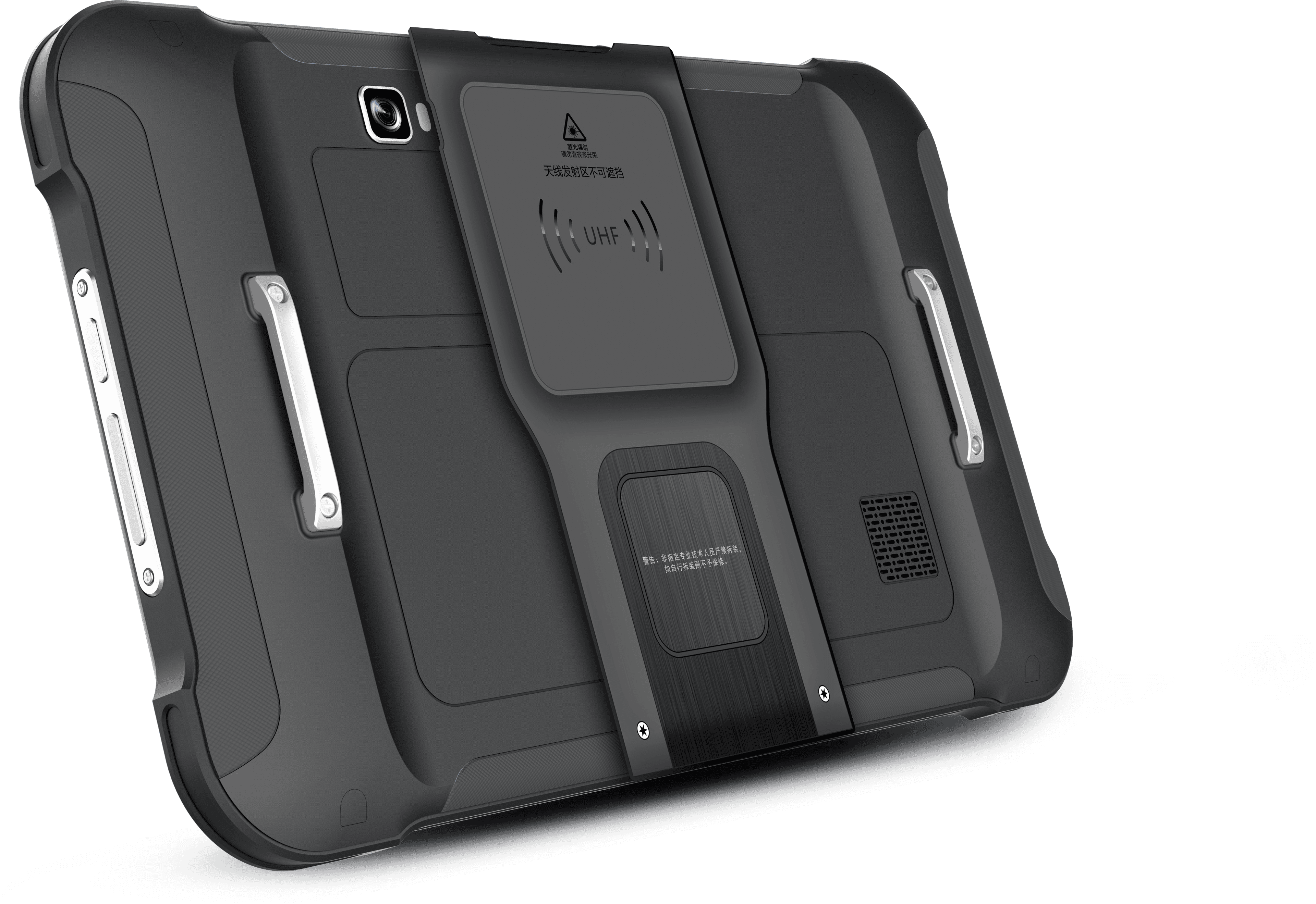

Chainway P80 RFID tablet, integrated with Chainway's industry best self-developed UHF RFID module based on Impinj E710 chip and supports the Impinj Gen2X, is the ideal device to get superior reading/writing performance. The device ensures high reliability with an 8700 mAh battery for long-lasting backup and has an 8" large IPS display with Android 13.0 OS. This tablet with RFID function can perform multiple tasks in various sectors such as retail operation, inventory management, logistics, asset management, etc.

Get Quote Specifications

8'' Screen & 8700mAh Battery, Abundant Functions Available

Features

Android 13
8' IPS HD Display
High-Performance Octa-Core 2.0GHz
8700mAh Large Capacity Battery
IP65 & 1.5m / 5ft. Drop

Functions

Optional Barcode, UHF, NFC, Fingerprint, and More
Self-Developed Module Based on Impinj E710
Impinj Gen2X for Stable and Powerful UHF Performance

SPECIFICATIONS

Physical Characteristics

Dimensions

250.8 x 152.0 x 15.0 mm / 9.87 x 5.98 x 0.59 in. (for standard version)

Weight

680 g / 23.99 oz. (for standard version)

Display

8'' IPS LTPS 1920 x 1200

Touch Panel

Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported

Power

Main battery: Li-ion, rechargeable, 8700 mAh Standby: over 500 hours Continuous use: over 10 hours (depending on user environment) Charging time: 5-7 hours (with standard AC adaptor and USB cable)

Notification

Sound, LED indicator

Expansion Slot

1 slot for Micro SIM card, 1 slot for Micro SIM / TF card, Optional dual PSAM card slots

Interfaces

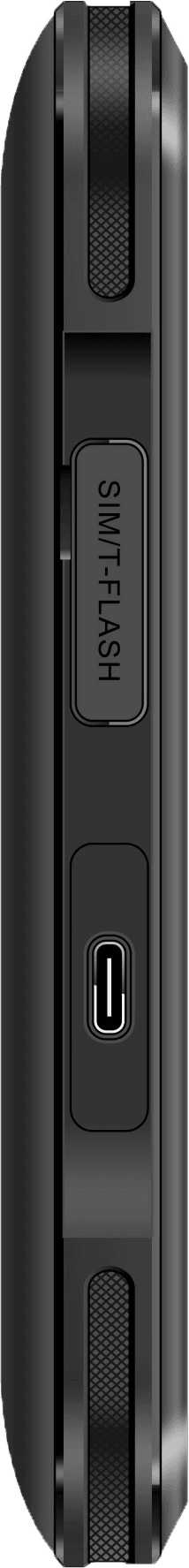

USB 2.0 Type-C, OTG

Audio

1 microphone; 1 speaker

Keypad

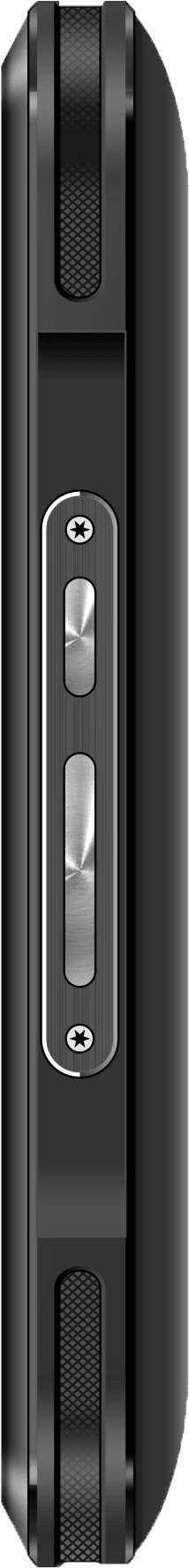

1 front key, 1 volume key, 1 power key, direction key (Optional)

Sensors

Gravity sensor; gyroscope; geomagnetic sensor; light / proximity sensor

Communication

WLAN

Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4, IPV6

WWAN

2G: 850/900/1800/1900MHz, GPRS, EDGE, 3G: CDMA EVDO: BC0, WCDMA: B1/B2/B5/B8, 4G: TDD-LTE: B34/B38/B39/B40/B41, FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B28

Bluetooth

Bluetooth 5.1

Vo-LTE

Support Vo-LTE HD video voice call

GNSS

GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna

Developing Environment

Operating System

Android 13; GMS&AER, 90-day security updates, FOTA, Soti MobiControl, SafeUEM supported

SDK

Chainway Software Development Kit

Language

Java

Tool

Eclipse / Android Studio

Performance

CPU

Octa-core, 2.0GHz; GMS&AER

RAM+ROM

4GB + 64GB

Expansion

Supports up to 256GB Micro SD card

User Environment

Operating Temp.

-4 °F to 122 °F / -20 °C to 50 °C

Storage Temp.

-40 °F to 158 °F / -40 °C to 70 °C

Humidity

5% RH - 95% RH non condensing

Drop Specification

Multiple 1.5 m / 4.92 ft. drops to concrete across the operating temperature range

Tumble Specification

500 x 0.5 m / 1.64 ft falls at room temperature

Sealing

IP65 per IEC sealing specifications

ESD

±15 KV air discharge, ±8 KV conductive discharge

Barcode Scanner

Scan Engine

Zebra SE4710; Honeywell HS7

1D Symbologies

UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.

2D Symbologies

PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch, Postal (KIX), etc.

Note

* This function is optional

UHF RFID

Engine

CM710-1 module based on Impinj E710

Frequency

865-868 MHz / 920-925 MHz / 902-928 MHz

Impinj Gen2X

Supported

Protocol

EPC C1 GEN2 / ISO18000-6C

Antenna

Circular polarization (3 dBi)

Power

1W (30 dBm, +5 dBm to +30 dBm adjustable), 2W Optional (33dBm, for Latin America, etc.) R/W

Fastest Read Rate (circular polarization)

900+ tags/sec

Max Read Range

Up to 10 m (open outdoors, Impinj MR6 tag)

Note

* Ranges and rates depend on tags and environment. * This function is optional

Fingerprint 1

Sensor

TCS1 Capacitive

Sensing Area (mm)

12.8 × 18.0

Resolution (dpi)

508 dpi, 8-bit greylevel

Certifications

FIPS 201, STQC

Format Extraction

ISO 19794, WSQ, ANSI 378, JPEG2000

Fake Finger Detection

Support by SDK

Security

AES, DES key encryption of the host communicationchannel

Note

* This function is optional

Fingerprint 2

Sensor

TLK1NC02

Sensing Area (mm)

14.0 X 22.0

Resolution (dpi)

508dpi, 256-bit greylevel

Certifications

FIPS 201, FBI

Format Extraction

ISO19794, WSQ, ANSI 378, JPEG2000

Fake Finger Detection

Support by SDK

Security

AES, DES key encryption of the host communicationchannel

Note

* This function is optional

Fingerprint 3

Sensor

Optical Morpho CBM-E3

Sensing Area (mm)

14.0 X 22.0

Resolution (dpi)

500 dpi, 256 greylevel

Certifications

FIPS PIV IQS / ISO 19794-4, MINEX & FIPS 201complaint, STQC

Format Extraction

ISO 19794-2/4, WSQ, ANSI 378, etc

Fake Finger Detection

Latex, Gelatin, Plasticine, Kapton, Transparent Film,Silicone, Rubber, Play-doh, Graphite Or Paper

Security

FIPS 140-2 level 2, multiple security methods available,including image and templates encryption, templatesignature, secure tunneling, etc.

Note

* This function is optional

Camera

Front Camera

5 MP

Rear Camera

13 MP Autofocus with flash

NFC

Frequency

13.56 MHz

Protocol

ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.

Chips

M1 card (S50, S70), CPU card, NFC tags, etc.

Range

0-4 cm
