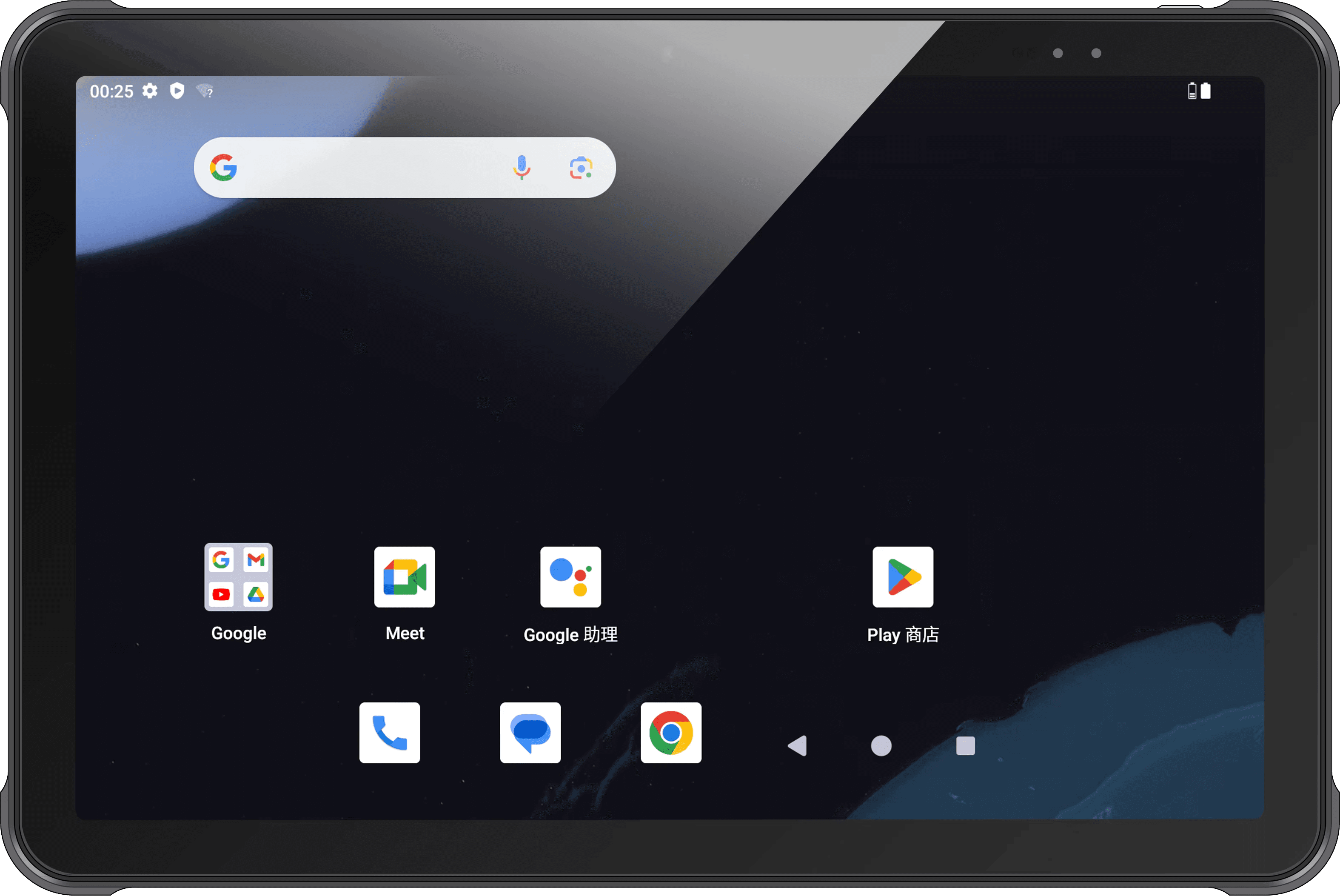

Chainway P80 P100S Industrial Tablet (Android 14)

More Powerful, More Extensible, More Advanced in Every Way

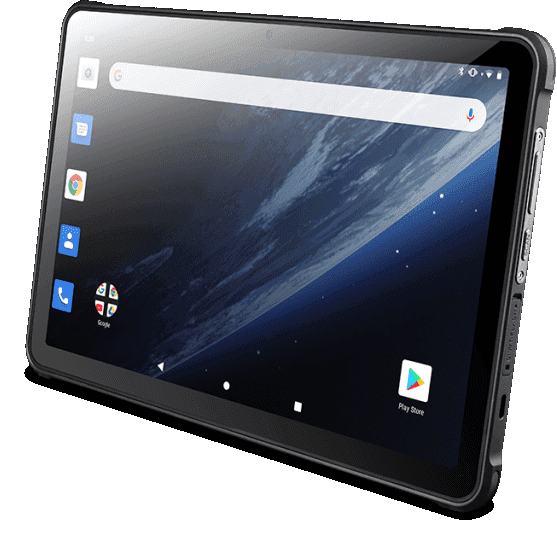

The Chainway P100S is the latest 4G industrial tablet designed for high performance. Its 10.95-inch display offers an immersive viewing experience, while Android 14 and a powerful CPU deliver seamless and efficient operation. Equipped with a 10,000mAh removable smart battery, it powers through even the longest shifts. With IP67 sealing, it's tough enough to withstand the harshest environments. Whether in retail, logistics, warehousing, manufacturing, or beyond, the P100S is your trusted partner for efficient and reliable operations.

Get Quote Specifications

Next-Level Specs. Unstoppable Performance. All-Day Power. Effortless Experience.

Features

Android 14
10.95-inch HD Display (1920x1200)
High Performance Octa-core 2.2GHz
10,000mAh Removable Battery with Embedded Smart Chip, Supporting Fast Charging and Hot-swapping
IP67 & 1.2m / 4ft Drop Resistance

Functions

Long-range Barcode Scanning
NFC, PSAM, and More
13MP Rear Camera

SPECIFICATIONS

Physical Characteristics

Dimensions

263.5 x 175.0 x 13.5 mm / 10.37 x 6.89 x 0.53 in. (for standard version)

Weight

802g / 28.29 oz. (for standard version)

Display

10.95', 1920x1200

Touch Panel

Corning Glass, multi-touch panel, gloves and wet hands supported

Power

10000mAh removable main battery with meter, support fast charge

Expansion Slot

1 PSAM card (optional); 1 slot for Nano SIM card, 1 slot for Nano SIM /TF card

Interfaces

USB 3.0 Type-C, OTG, support USB Type-C Digital Earphone

Audio

2 microphone, 2 speakers

Keypad

1 scan key, 1 power key, 1 volume keys (+/-), 2 virtual keys

Communication

WLAN

Support 802.11 a/b/g/n/ac, 2.4G/5G dual-band; Wi-Fi 6E (optional)

WWAN

2G: GSM:B2/B3/B5/B8 3G: WCDMA:B1/B2/B4/B5/B8 4G: TDD LTE: B34/B38/B39/B40/B41 190M FDD LTE: B1/B2/B3/B4/B5/B7/B8/B12/B17/ B18/B20/B28ab

Bluetooth

Bluetooth V5.2, support Bluetooth headset

Vo-LTE

Support Vo-LTE HD video voice call Galileo

GNSS

GPS/AGPS, GLONASS, BeiDou, Galileo

Developing Environment

Operating System

Android 14

SDK

Chainway Software Development Kit

Language

Java

Tool

Eclipse/Android studio

Performance

CPU

Octa-core 2.2 GHz

RAM+ROM

4GB + 64GB / 8GB + 256GB (optional)

Expansion

Supports up to 512 GB Micro SD card

User Environment

Operating Temp.

-4°F to 122°F / -20°C to 50°C

Storage Temp.

-40°F to 158°F / -40°C to 70°C

Humidity

5% RH-95% RH (non condensing)

Drop Specification

MIL-STD-810H (SGS Test): Multiple 1.2 m / 3.94 ft. drops to concrete across the operating temperature range

Sealing

IP67 per lEC sealing specifications

ESD

±15 KV air discharge, ±8 KV conductive discharge

Barcode Scanner

Scan Engine

Zebra SE4100, SE5500; CM60

1D Symbologies

UPC/EAN, Code128, Code39, Code93, Codell, interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, Msl, Rss, etc.

2D Symbologies

PDF417, MicroPDF417, Composite, RsS, TLC-39Datamatrix, QR code, Micro QR code, Aztec, Maxicode; Postal Codes: Us PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch, Postal (KIX), etc.

Camera

Front Camera

5 MP

Rear Camera

13 MP Autofocus with flash

NFC

Frequency

13.56 MHZ

Protocol

IS014443A/B, IS015693, NFC-IP1, NFC-IP2, etc.

Chips

M1 card (s50, s70), CPU card, NFC tags, etc.

Range

2-4 cm

PSAM

Protocol

IS07816

Slots

1 PSAM card slot

Note

* This function is optional
