Chainway C71 Optical Fingerprint Scanner (Android 11/13)

Chainway C71 Optical Fingerprint Scanner (Android 11/13)

More Powerful, More Extensible, More Advanced in Every Way

Chainway C71 is an Android rugged mobile computer, built with optical fingerprint sensor CBM-E3. It is FIPS 201 compliant, and enables secure data encryption and fake finger detection. With its powerful Octa-core processor and wireless connections such as 4G, Bluetooth and Wi-Fi, fingerprint scanner, barcoding and NFC, you can find this easy-to-deploy device an exceptionally valuable helper to increase working efficiency and productivity.

Get QuoteSpecifications

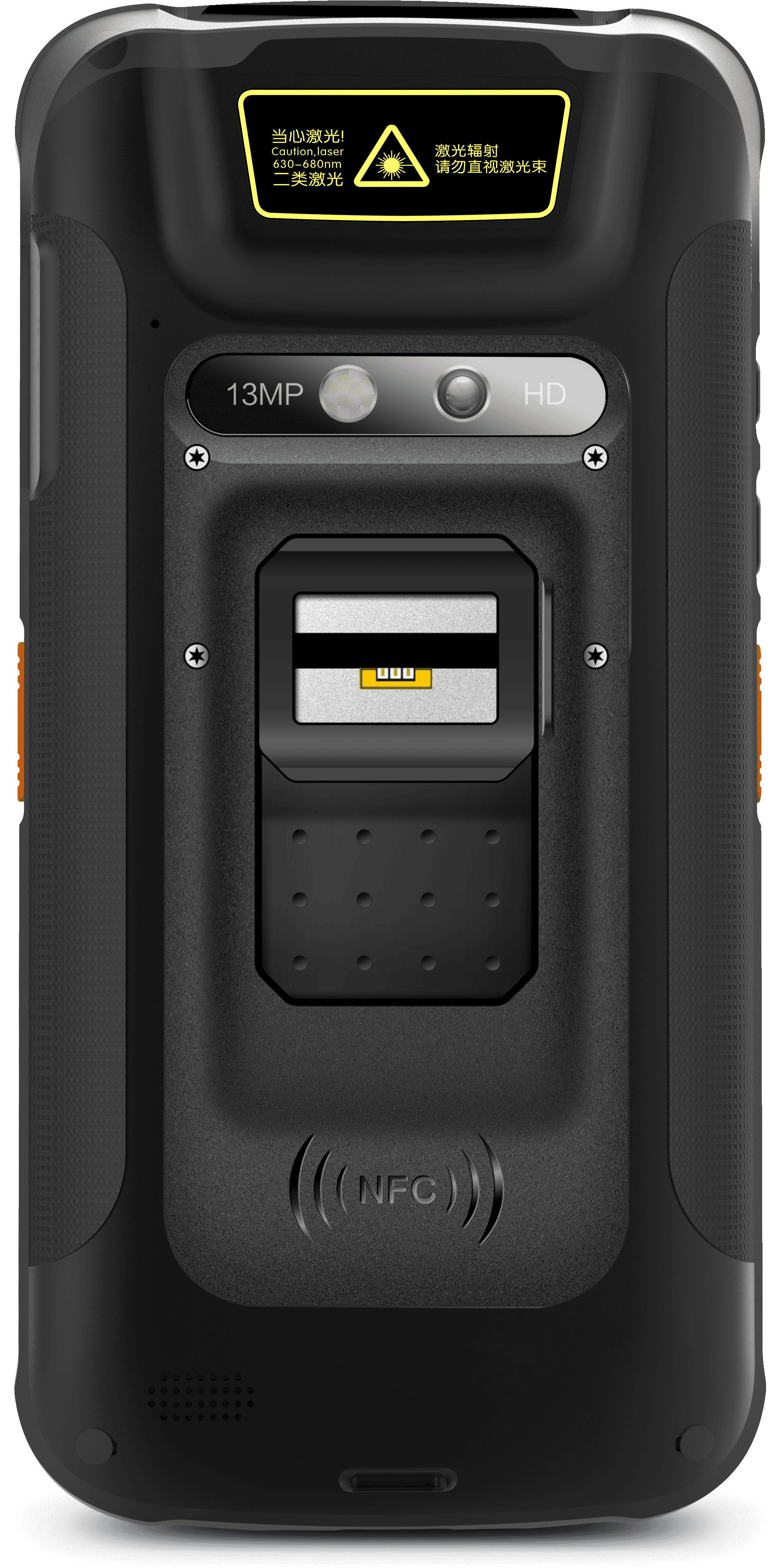

image 1

Accurate Fingerprint Reading, Reliable Identity Verification

Features

  • High-Performance Octa-Core 2.3GHz

  • Android 13/11

  • 5000mAh Large Capacity Battery

  • IP67 & 1.8m / 6ft. Drop

Functions

  • Precise Fingerprint Recognition

  • Barcode, NFC, and More

SPECIFICATIONS

Physical Characteristics

Dimensions

164.2*78.8*17.5mm/6.46*3.10*0.69in; ( the thickest: 31.5mm/1.24in)

Weight

<314g/11.08oz

Display

5.2'' IPS LTPS 1920x1080P

Touch Panel

Corning Gorilla Glass 3, multi-touch panel, gloves and wet hands supported

Power

Main battery: Li-ion, rechargeable, 5000mAh Standby: over 350 hours Continuous use: over 12 hours (depending on user environment) Charging time: 3-4 hours (with standard adaptor and USB cable)

Notification

Sound, LED indicator, vibrator

Expansion Slot

1 slot for Nano SIM card, 1 slot for Nano SIM or TF card

Interfaces

USB 2.0 Type-C, OTG, Type-C headphones supported

Audio

2 microphones, 1 for noise cancellation; 1 speaker; receiver

Keypad

4 front keys, 1 power key, 2 scan keys, 1 multifunctional key

Sensors

Light sensor, proximity sensor, gravity sensor

Communication

WLAN

IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna

WWAN

2G: GSM850/GSM900/DCS1800/PCS1900, 3G: WCDMA: B1/B2/B4/B5/B8, CDMA2000 EVDO: BC0, TD-SCDMA: A/F, 4G: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A, B28B/B34/B38/B39/B40/B41

WWAN (Others)

Depending on the country's ISP

Bluetooth

Bluetooth 5.0

GNSS

GPS/AGPS, GLONASS, BeiDou; internal antenna

Developing Environment

Operating System

Android 11 / 13; GMS, FOTA, Soti MobiControl, SafeUEM supported.

SDK

Chainway Development Kit (based on Morpho SDK)

Language

Java

Tool

Eclipse / Android Studio

Performance

CPU

Octa-core 2.3GHz

RAM+ROM

3GB + 32GB, 4GB + 64GB (optional)

Expansion

Supports up to 256GB Micro SD card

User Environment

Operating Temp.

4°F to 122°F / -20°C to 50°C

Storage Temp.

-40°F to 158°F / -40°C to 70°C

Humidity

5%RH - 95%RH non condensing

Drop Specification

Multiple 1.5 m / 4.92 ft drops to the concrete across the operating temperature range

Tumble Specification

1000 x 0.5 m / 1.64 ft falls at room temperature

Sealing

IP65 dependent

ESD

±15 KV air discharge, ±8 KV conductive discharge

Barcode Scanner

1D Linear Scanner

Honeywell: N4313

2D Imager Scanner

Zebra: SE4710

1D Symbologies

UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.

2D Symbologies

PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.

Note

*This function is optional

Fingerprint 1

Sensor

TCS1

Sensing Area (mm)

12.8 × 18.0

Resolution (dpi)

508 dpi, 8-bit greylevel

Certifications

FIPS 201, STQC

Format Extraction

ISO 19794, WSQ, ANSI 378, JPEG2000

Fake Finger Detection

Support by SDK

Security

AES, DES key encryption of the host communication channel

Fingerprint 2

Sensor

TLK1NC02

Sensing Area (mm)

14.0 X 22.0

Resolution (dpi)

508dpi, 256 greylevel

Certifications

FIPS 201, FBI

Format Extraction

ISO19794, WSQ, ANSI 378, JPEG2000

Fake Finger Detection

Support by SDK

Security

AES, DES key encryption of the host communication channel

Note

* This function is optional

Fingerprint 3

Sensor

Optical Morpho CBM-E3

Sensing Area (mm)

14 x 22

Resolution (dpi)

500 dpi, 256 greylevel

Certifications

FIPS PIV IQS / ISO 19794-4, MINEX & FIPS 201 compliant, STQC

Format Extraction

ISO 19794-2/4, WSQ, ANSI 378, etc

Fake Finger Detection

Latex, GeLatin, Plasticine, Kapton, Transparent Film, Silicone, Rubber, Play-doh, Graphite Or Paper

Security

FIPS 140-2 level 2, multiple security methods available, including image and templates encryption, template signature, secure tunneling, etc.

Camera

Front Camera

5 MP

Rear Camera

13 MP autofocus rear camera with flash Facial Recognition lSO19794-5 Compatible

Note

*Front Camera function is optional

NFC

Frequency

13.56 MHz

Protocol

ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc

Chips

M1 card (S50, S70), CPU card, NFC tags, etc

Range

2-4 cm
