202.0 x 72.5 x 32.0mm / 7.95 x 2.85 x 1.26in.

13.05oz. / 370g(SE4710); 14.25oz. / 404g(SE4850); 26.05oz. / 738g(SE4850, UHF, pistol battery) Device Weight for Argentina, Uruguay, Bolivia, Ecuador market: 342~404 g, including battery

4-inch high definition display, 800 x 480

6700mAh removable main battery, 5200mAh optional pistol battery, support QC3.0 and RTC; Built-in 100mAh backup battery, supporting battery hot swap, improving reliability and ensuring user data security Standby: up to 680 hours (only main battery ; WiFi: up to 560h; 4G: up to 560h) Continuous use: over 12 hours (depending on user environment) Charging time: 3.5 hours (charge device by standard adaptor and USB cable)

Multi-touch panel, gloves and wet hands supported

Sound, LED indicator, vibrator

USB Type-C, USB 3.1, OTG, extended thimble

1 slot for Micro SIM card, 1 slot for TF card

2 microphones, 1 for noise cancellation; 2 speakers; receiver

Main keyboard (Optional): 27 keys / 37 keys / 47 keys; Side keys: 2 SCAN keys + 2 volume keys + 1 user-defined key

Accelerometer sensor, light sensor, proximity sensor, gravity sensor

Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4,IPV6, 5G PA; Fast roaming: PMKID caching, 802.11r, OKC; Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165), Depends on local regulations; Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI- PSK-EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC, WPA3-Enterprise,etc.

2G: 850/900/1800/1900MHz 3G: CDMA EVDO: BC0 WCDMA: 850/900/1900/2100MHz TD-SCDMA: A/F(B34/B39) 4G: B1/B3/B5/B7/B8/B20/B38/B39/B40/B41

2G: 850/900/1800/1900MHz 3G: 850/900/1900/2100MHz 4G: B2/B4/B5/B7/B12/B13/B17/B28A/B28B/B38

Bluetooth 5.1

Support Vo-LTE HD video voice call

GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna

Android 11/13; GMS, 90-day security updates, Android Enterprise Recommended, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported. Committed support for a future upgrade to Android 18 pending feasibility

Chainway Software Development Kit

Java

Eclipse / Android Studio

Octa-core, 2.0 GHz

3GB + 32GB / 4GB + 64GB

Supports up to 256GB Micro SD (TF) card

-4℉ to 122 ℉ / -20℃ to 50℃ -22℉ to 122℉ / -30℃ to 50℃ (cold storage model)

-40℉ to 158℉ / -40℃ to 70℃

5 RH to 95% RH (non condensing)

Multiple 1.8m / 5.9ft. drops (at least 20 times) to the concrete across the operating temperature range

1000 x 0.5m / 1.64ft. falls at room temperature

IP65 per IEC sealing specifications

± 15KV air discharge, ± 8KV conductive discharge

Zebra: SE4710/SE4750SR/SE4750MR/SE4750DP/SE4850; Honeywell: N6603/EX30

UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.

PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.

*This function is optional

CM710-1 module based on Impinj E710

865-868MHz / 920-925MHz / 902-928MHz

Supported

EPC C1 GEN2 / ISO18000-6C

Circular Polarized Antenna (4dBi)

1W (30dBm, +5dBm to +30dBm adjustable) 2W Optional (33dBm, for Latin America, etc.)

1300+ tags/sec

Pin Connector

27m (Impinj MR6 tag, size70 x 15mm) 26m (Impinj M750 tag, size70 x 15mm) 30m (Alien H3 Anti-Metal tag, size 130 x 42mm)

* Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment.

*This function is optional

Rear 13MP Autofocus with flash

13.56MHz

ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.

M1 card (S50, S70), CPU card, NFC tags, etc.

2-4cm

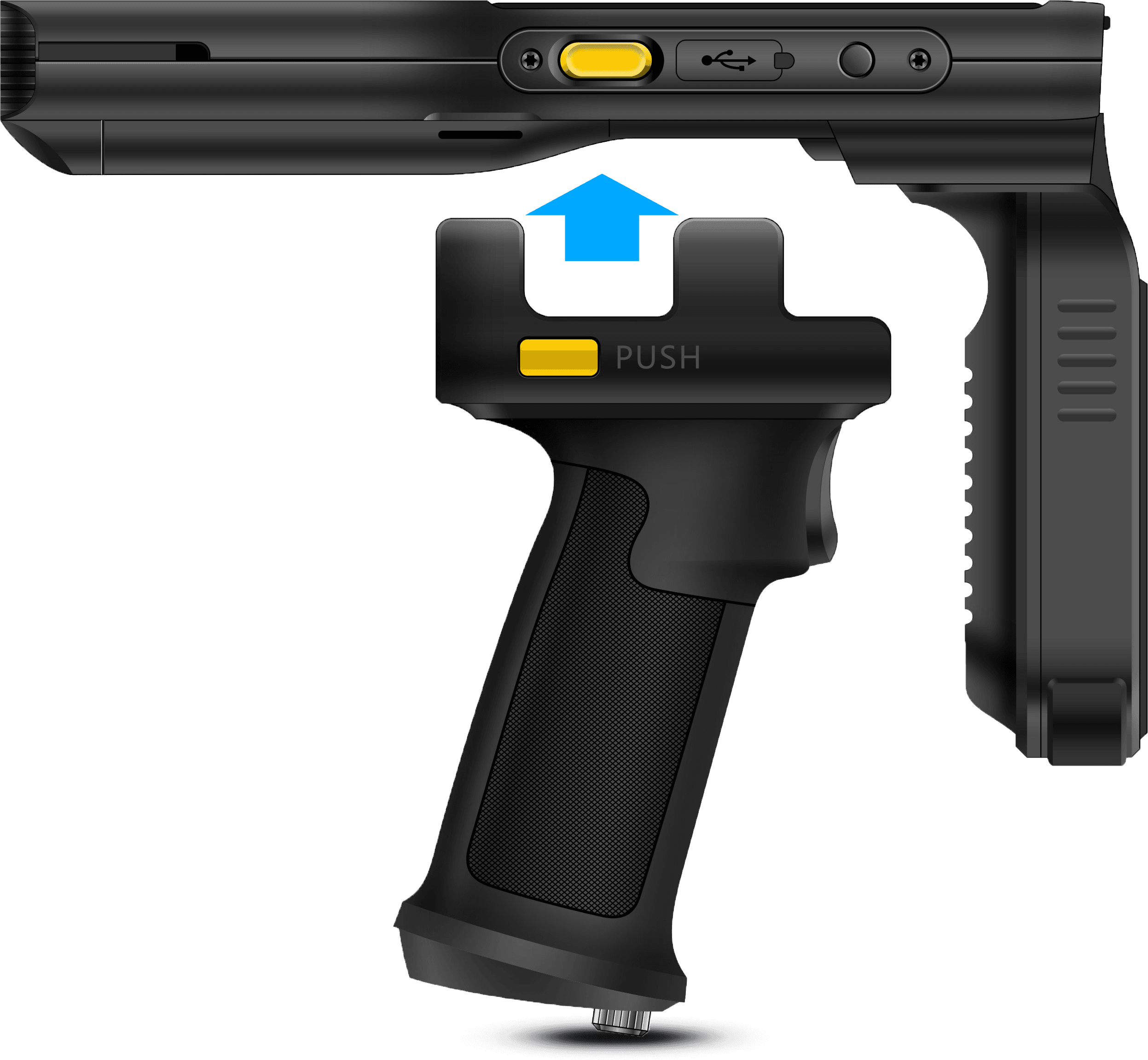

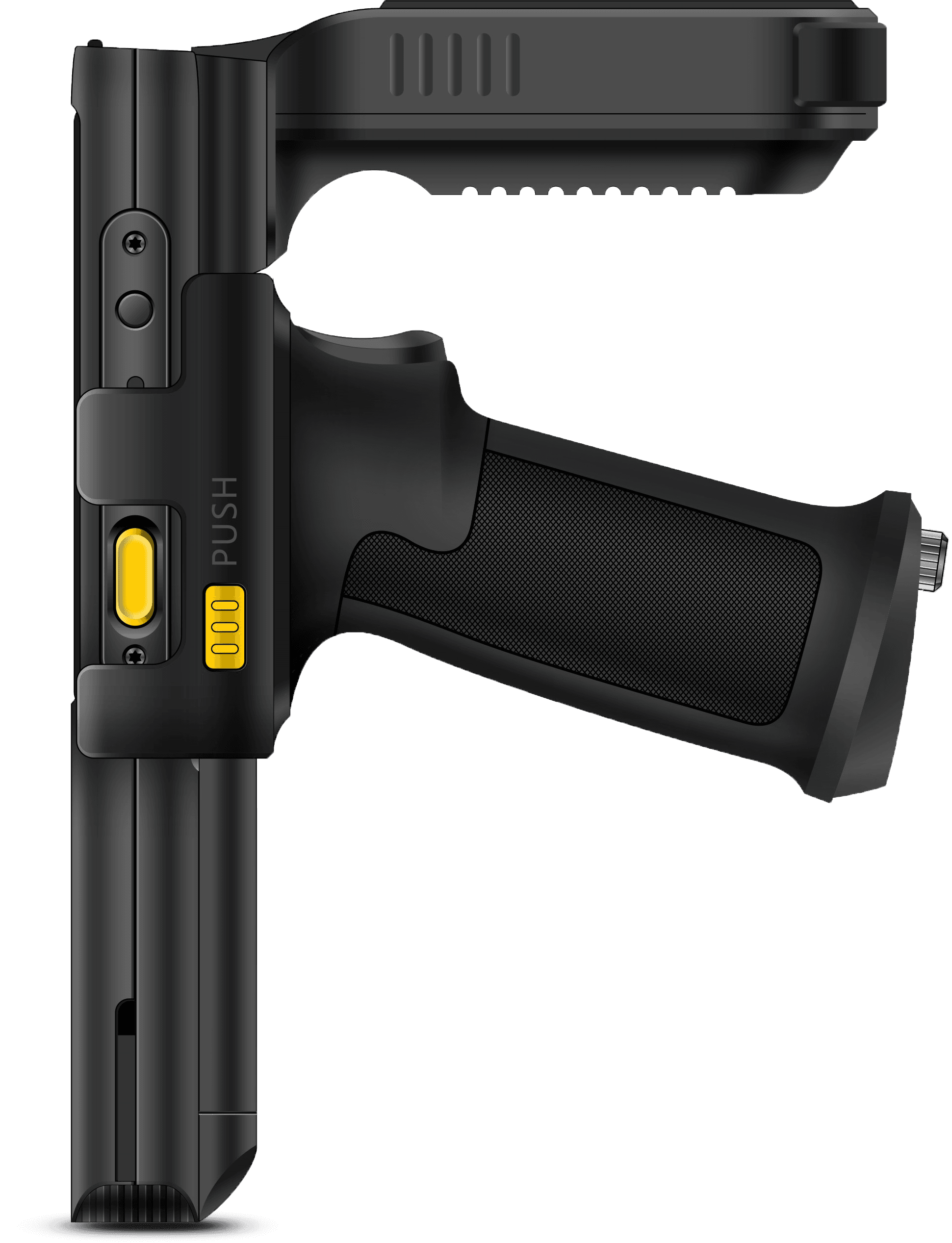

Separate handle with one button； Handle + battery (handle battery 5200mAh, one button) ; UHF back clip + handle (5200mAh, one button) ; Wrist Strap; Charging Cradle

*See details in Accessory Guide
