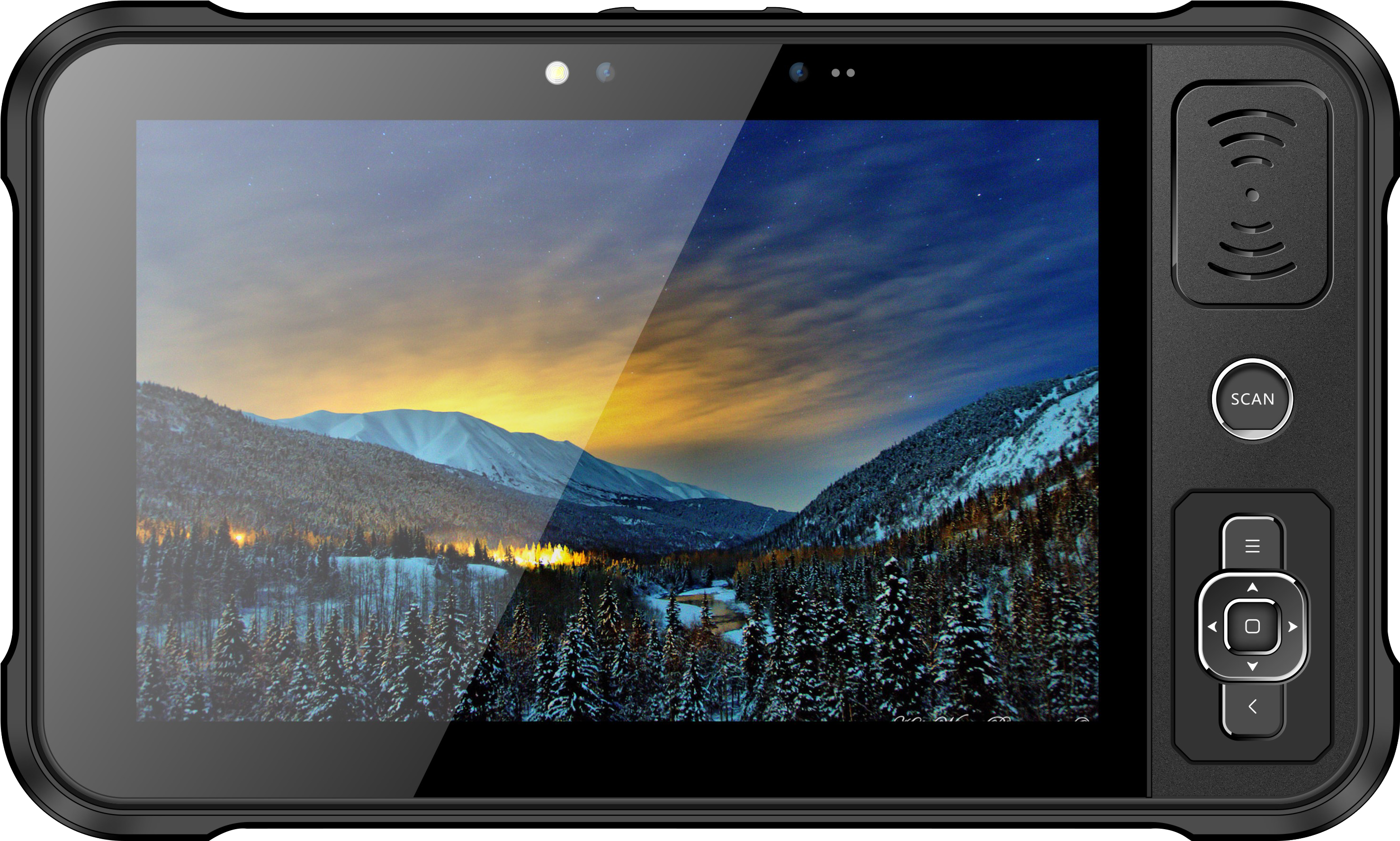

Chainway P80 Industrial Tablet (Android 9)

More Powerful, More Extensible, More Advanced in Every Way

Chainway P80 is an Android 9 rugged tablet with abundant functions. With Qualcomm Octa-Core CPU, 8-inch FHD screen, 8000 mAh battery and comprehensive data capture options like UHF RFID, barcode scanning, NFC, fingerprint recognition, etc. The rugged tablet can meet requirements in industrial fulfillments, such as retail, logistics, power, warehousing, transportation and so forth.

Get Quote Specifications

8' Screen & 8000mAh Battery, Abundant Functions Available

Features

Android 9
8' IPS HD Display
High-Performance Octa-Core 1.8GHz
8000mAh Large Capacity Battery
IP65 & 1.5m / 5ft. Drop

Functions

Optional Barcode, UHF, NFC, Fingerprint, and More
Self-Developed Module Based on Impinj E710
Supports Impinj Gen2X for Enhanced UHF Performance

SPECIFICATIONS

Physical Characteristics

Dimensions

250.8 mm x 152.0 mm x 15.0 mm / 9.87 x 5.98 x 0.59 in. (for standard version)

Weight

700 g / 24.7 oz. (for standard version)

Display

8'' IPS LTPS 1920 x 1200 / IPS LTPS 1280 x 800

Touch Panel

Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported

Power

Main battery: Li-ion, rechargeable, 8000 mAh Standby: over 500 hours Continuous use: over 10 hours ( depending on user environment ) Charging time: 5-7 hours ( with standard AC adaptor and USB cable )

Notification

Sound, LED indicator

Expansion Slot

1 slot for Micro SIM card, 1 slot for Micro SIM / TF card, Optional dual PSAM card slots

Interfaces

USB 2.0 Type-C, OTG

Audio

1 microphone, 1 speaker, receiver

Keypad

1 front key, 1 volume key, 1 power key, direction key (optional)

Sensors

Accelerometer sensor, geomagnetic sensor, gyroscope

Communication

WLAN

Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4, IPV6; Fast roaming: PMKID caching, 802.11r, OKC; Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165),Depends on local regulations; Security and Encryption: WEP,WPA/WPA2-PSK(TKIP and AES),WAPI- PSK-EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC,etc.

WWAN (Europe, Asia)

2G: 850/900/1800/1900MHz, GPRS, EDGE, 3G: CDMA EVDO: BC0, TD-SCDMA: B34/B39, WCDMA: B1/B5/B8, 4G: TDD-LTE: B34/B38/B39/B40/B41, FDD-LTE: B1/B3/B5/B7/B8/B20

WWAN (America)

3G: WCDMA: B2/B4/B5, 4G: FDD-LTE: B2/B4/B5/B7/B12/B13/B17/B28A/B28B

WWAN (Others)

Depending on the country's ISP

Bluetooth

Bluetooth 4.2/4.1+HS/4.0/3.0+HS/2.1+EDR

Vo-LTE

Support Vo-LTE HD video voice call

GNSS

GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna

Note

* Chainway P80 models being manufactured for Turkish Market, do not include Voice Call (Phone Call) function. WAN module included on those models only support DATA transfer.

Developing Environment

Operating System

Android 9; GMS, 90-day security updates, Android Enterprise, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported

SDK

Chainway Software Development Kit

Language

Java

Tool

Eclipse / Android Studio

Performance

CPU

Octa-core 1.8GHz; GMS&AER

RAM+ROM

3GB + 32GB, 4GB + 64GB (optional)

Expansion

Supports up to 256GB Micro SD (TF) card

User Environment

Operating Temp.

-4 °F to 122 °F / -20 °C to 50 °C

Storage Temp.

-40 °F to 158 °F / -40 °C to 70 °C

Humidity

5% RH - 95% RH non condensing

Drop Specification

Multiple 1.5 m / 4.9 ft. drops (at least 20 times) to the concrete across the operating temperature range

Tumble Specification

500 x 0.5 m / 1.64 ft. falls at room temperature

Sealing

IP65 per IEC sealing specifications

ESD

±15 KV air discharge, ±8 KV conductive discharge

Barcode Scanner

2D Imager Scanner

Zebra SE4710

1D Symbologies

UPC/EAN, Code128, Code39, Code93, Code11, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, MSI, RSS, etc.

2D Symbologies

PDF417, MicroPDF417, Composite, RSS, TLC- 39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.

Note

* This function is optional

UHF1

Engine

CM710-1 module based on Impinj E710

Frequency

865-868 MHz / 920-925 MHz / 902-928 MHz

Protocol

EPC C1 GEN2 / ISO18000-6C Supports Impinj Gen2X

Antenna

Circular polarization (3 dBi)

Power

1W ( 30dBm, +5dBm to +30dBm adjustable ), 2W Optional ( 33dBm, for Latin America, etc. )

Max Read Range

Up to 10 m (open outdoors, Impinj MR6 tag)

Fastest Read Rate

900+ tags/sec

Note

* Optional, * Ranges and rates depend on tags and environment

UHF2

Engine

CM310-1 module based on Impinj E310

Frequency

865-868 MHz / 920-925 MHz / 902-928 MHz

Protocol

EPC C1 GEN2 / ISO18000-6C Supports Impinj Gen2X

Antenna

0 dBi

Power

1W ( 30dBm, +5dBm to +30dBm adjustable )

Max Read Range

30 cm

Note

* Built-in UHF, optional, * Ranges and rates depend on tags and environment

Fingerprint 1

Sensor

TCS1 Capacitive

Sensing Area (mm)

12.8 × 18.0

Resolution (dpi)

508 dpi, 8-bit greylevel

Certifications

FIPS 201, STQC

Format Extraction

ISO 19794, WSQ, ANSI 378, JPEG2000

Fake Finger Detection

Support by SDK

Security

AES, DES key encryption of the host communication channel

Note

* This function is optional

Fingerprint 2

Sensor

TLK1NC02

Sensing Area (mm)

14.0 X 22.0

Resolution (dpi)

508dpi, 256-bit greylevel

Certifications

FIPS 201, FBI

Format Extraction

ISO19794, WSQ, ANSI 378, JPEG2000

Fake Finger Detection

Support by SDK

Security

AES, DES key encryption of the host communication channel

Note

* This function is optional

Fingerprint 3

Sensor

Optical Morpho CBM-E3

Sensing Area (mm)

14 x 22

Resolution (dpi)

500 dpi, 256 greylevel

Certifications

FIPS PIV IQS / ISO 19794-4, MINEX & FIPS 201 complaint, STQC

Format Extraction

ISO 19794-2/4, WSQ, ANSI 378, etc.

Fake Finger Detection

Latex, Gelatin, Plasticine, Kapton, Transparent Film, Silicone, Rubber, Play-doh, Graphite Or Paper

Security

FIPS 140-2 level 2, multiple security methods available, including image and templates encryption, template signature, secure tunneling, etc.

Note

* This function is optional

Camera

Front Camera

8 MP

Rear Camera

13MP autofocus rear camera with flash

NFC

Frequency

13.56 MHz

Protocol

ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.

Chips

M1 card (S50, S70), CPU card, NFC tags, etc.

Range

2-4 cm

PSAM

Protocol

ISO7816

Slots

2 PSAM card slots

Note

* This function is optional
