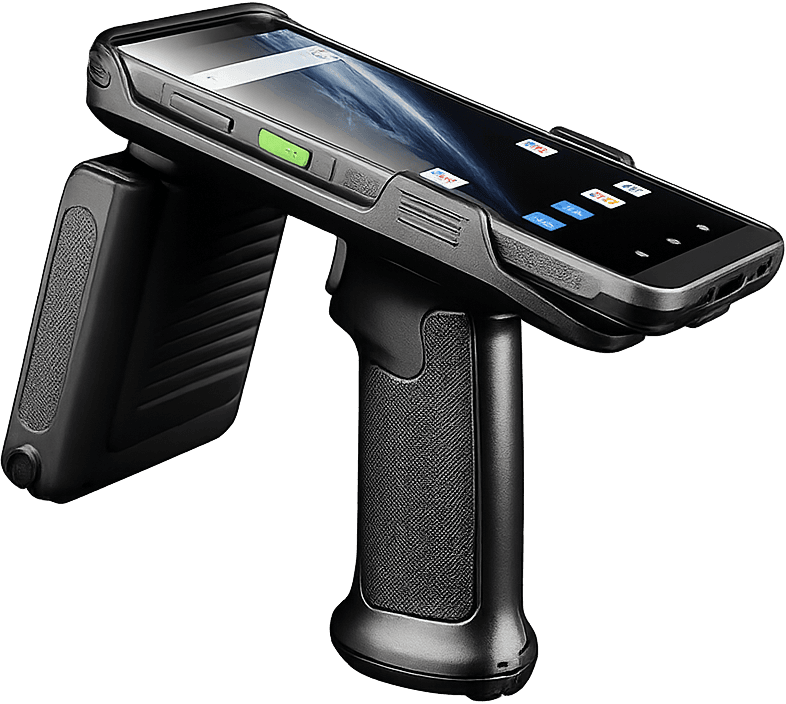

Chainway MC50 5G UHF RFID Reader (Android 12)

More Powerful, More Extensible, More Advanced in Every Way

Chainway MC50 UHF is a 5G handheld reader integrates with Impinj E710 and supports Impinj Gen2X, it offers unparalleled UHF performance and a convenient UHF back-clip, allowing easy detachment and conversion into a lightweight mobile computer. Paired with fast 5G, Wi-Fi 6-ready connectivity, and many other top-tier features, this reader is your complete solution for unmatched performance.

Get Quote Specifications

Most Powerful Handheld RFID Reader, Setting New Standards for RFID Performance and Efficiency

Features

5G IoT Chip Platform
Qualcomm Octa-Core 2.0GHz
10,200mAh Removable Battery
Wi-Fi 6-Ready
6-Inch FHD Display
Host IP67 & 1.5m / 5ft. Drop

Functions

Self-Developed UHF Module Based on Impinj E710
Impinj Gen2X for Enhanced UHF Performance
1300+ Tags/s Read Rate
30m+ / 100ft.+ Read Range
Detachable UHF Back-Clip
Barcode Scanning, NFC, and More

SPECIFICATIONS

Physical Characteristics

Dimensions

165.0 x 83.8x 138.0mm / 6.49 x 3.30 x 5.43 in.

Weight

679g / 23.95oz. (device with battery)

Display

6-inch high definition display (18:9), 1440 x 720

Touch Panel

Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported

Power

5000mAh removable main battery 5200mAh removable pistol battery with / without Meter(Optional) support QC3.0 and RTC

Interfaces

USB Type-C, USB 3.1, OTG

Audio

2 microphones, 1 for noise cancellation; 1 speaker; 1 receiver

Keypad

Power key, 2 scan keys, volume (+/-) keys

Sensors

G_sensor, proximity sensor, light sensor, geomagnetic sensor, gyroscope

Communication

WLAN

Support 802.11 a/b/g/n/ac/ax-ready, 2.4G/5G dual-band, IPV4, IPV6, 5G PA; 2x2 MU-MIMO; Fast roaming: PMKID caching, 802.11r, OKC Operating Channels: 2.4G (channel 1~13), 5G (channel 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165), Depends on local regulations Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI-PSK-EAP-TTLS, EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC, WPA3-Enterprise, WPA3-Enhanced Open, WPA3 Easy Connect, WPA3-Personal, etc.

WWAN

2G: 850/900/1800/1900MHz 3G: 850/900/1900/2100MHz 4G: B1/B2/B3/B5/B7/B8/B20/B28A/B28B/B34/B38/B39/B40/ B41 5G: N1/N3/N8/N28/N41/N78/N79

Bluetooth

Bluetooth 5.1

Vo-LTE

Support Vo-LTE HD video voice call

GNSS

GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna

Developing Environment

Operating System

Android 12

SDK

Chainway Software Development Kit

Language

Java

Tool

Eclipse / Android Studio

Performance

CPU

Octa-core, 2.0GHz

RAM+ROM

4GB + 64GB / 6GB + 128GB (Optional)

Expansion

Supports up to 256GB TF card

User Environment

Operating Temp.

-4°F to 122°F / -20°C to +50°C

Storage Temp.

-40°F to 158°F / -40°C to +70°C

Humidity

5% RH - 95% RH non condensing

Drop Specification

Multiple 1.5m / 4.92ft. drops (at least 20 times) to the concrete across the operating temperature range

Tumble Specification

1000 x 0.5m / 1.64ft. falls at room temperature

Sealing

Host IP67 per IEC sealing specifications

Barcode Scanner

2D Scanner

Zebra: SE4710/SE5500/SE4750; CM60;

1D Symbologies

UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.

2D Symbologies

PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.

Note

*This function is optional

UHF RFID

Engine

CM710-1 module based on Impinj E710

Frequency

865-868 MHz / 920-925 MHz / 902-928 MHz

Impinj Gen2X

Supported

Protocol

EPC C1 GEN2 / ISO18000-6C

Antenna

Circular Polarized Antenna (4 dBi)

Power

1W (30dBm, +5dBm to +30dBm adjustable) 2W Optional (33dBm, for Latin America, etc.)

Fastest Read Rate

1300+ tags/sec (Circular Polarized)

Communication Mode

Pin Connector

Max Read Range

26m (Impinj MR6 tag, size 70 x 15mm) 28m (Impinj M750 tag, size 70 x 15mm) 30m (Alien H3 Anti-Metal tag, size 130 x 42mm)

Note

*This function is optional *Ranges and rates depend on tags and environment

Camera

Front Camera

5MP

Rear Camera

16MP Autofocus with flash

NFC

Frequency

13.56 MHz

Protocol

ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.

Chips

M1 card (S50, S70), CPU card, NFC tags, etc.

Range

2-4 cm

Optional Accessories

Accessories

USB Cable, Adapter, Charging Cradle, Rugged Rubber Boot, etc.

Note

*See details in accessory guide
