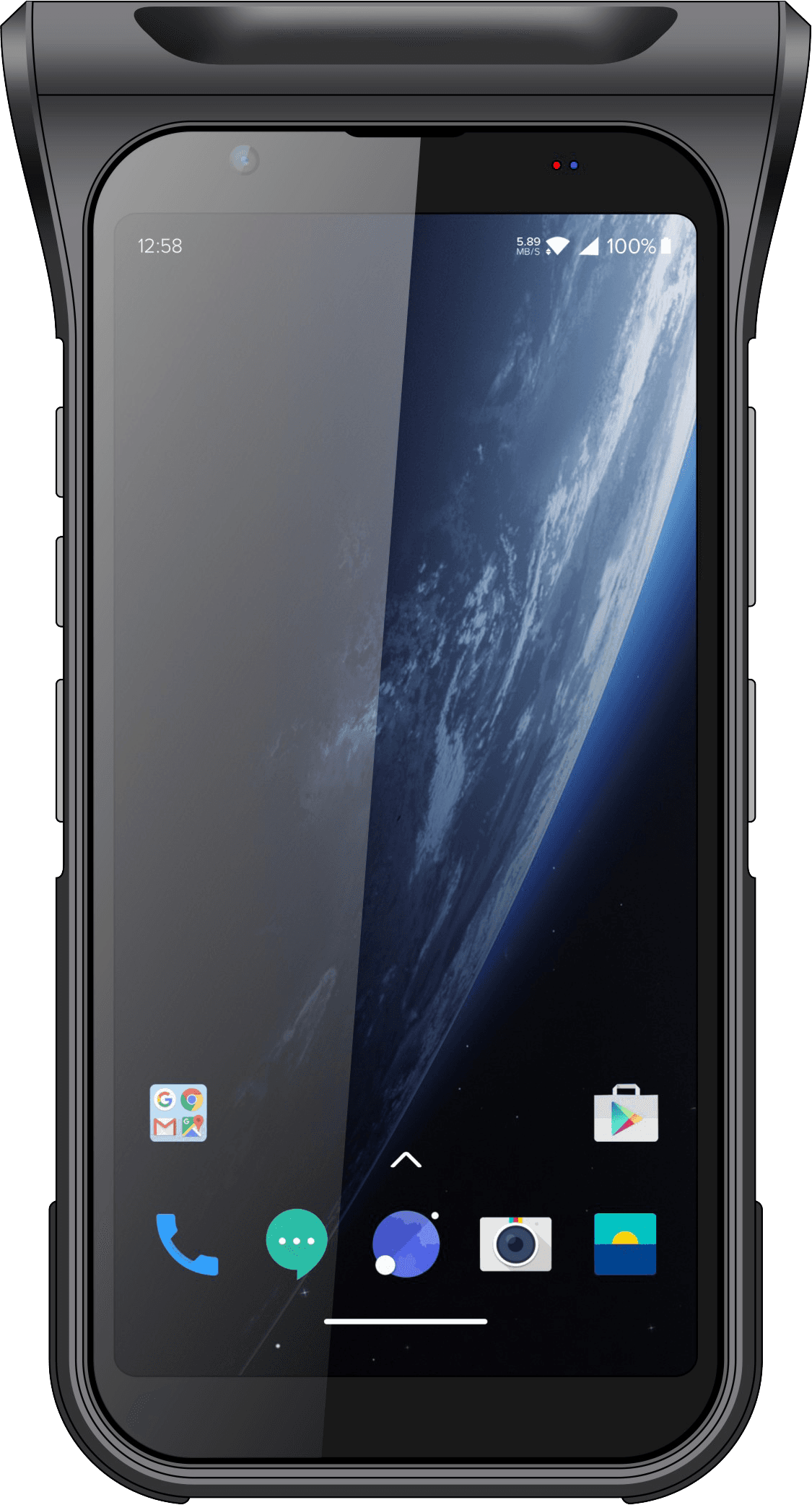

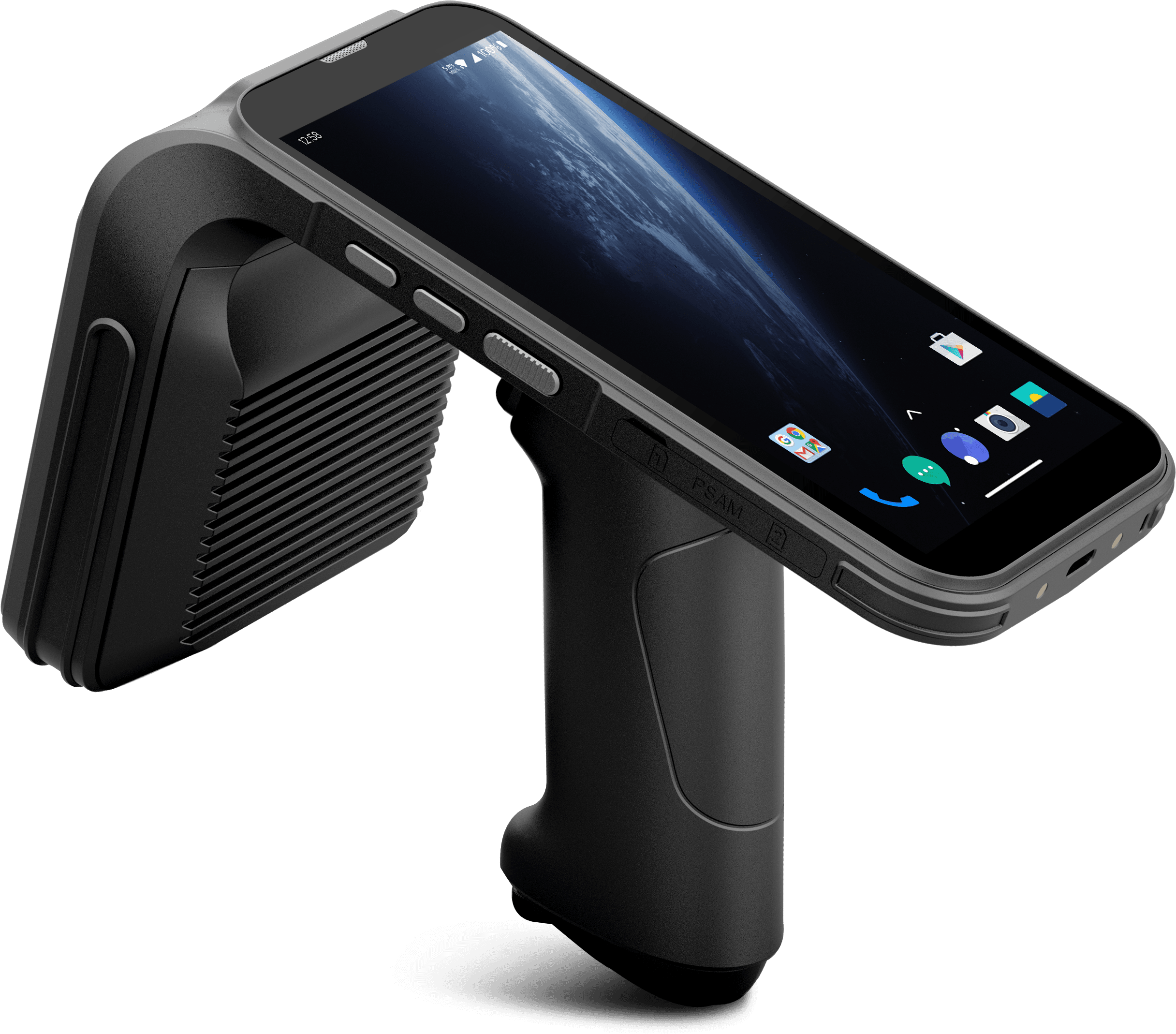

Chainway C5 UHF RFID Reader (Android 11/13)

Chainway C5 UHF RFID Reader (Android 11/13)

More Powerful, More Extensible, More Advanced in Every Way

Chainway C5 UHF is an all-in-one high-performance UHF RFID Reader. It integrates with Impinj E710 and supports Impinj Gen2X, offering industry-leading UHF performance. C5 adopts an integrated design, provides more stable UHF performance, and delivers higher durability. It features Android 11/13, octa-core processor, optional mass internal memory and a large capacity removable battery. C5 also supports 2D scanning, NFC, fingerprint recognition and other functions, which enables it to be widely used in banking, public security, warehousing, retail, logistics and other industries.

Get QuoteSpecifications
image 1

Stronger UHF Performance, Higher Security and Reliability

Features

  • Integrated UHF Design

  • Octa-Core 2.3GHz

  • 5" Fingerprint & 6" Large Screen Options

  • 6700mAh / 13,400mAh Removable Battery

  • Fast Charging & Hot-Swapping

  • IP65 & 1.5m / 5ft. Drop

Functions

  • Self-Developed UHF Module Based on Impinj E710

  • Impinj Gen2X for Enhanced UHF Performance

  • 1300+ Tags/s Read Rate

  • 30m+ / 100ft.+ Read Range

  • Barcode Scanning, NFC, PSAM, and More

SPECIFICATIONS

Physical Characteristics

Dimensions

177.0 x 80.2 x 14.8mm / 6.97 x 3.15 x 0.58in

Weight

626g / 22.08oz. (device with battery)

Display

5-inch (Fingerprint); 1280 x 720 / 6-inch; 2160 x 1080

Touch Panel

Multi-touch panel, gloves and wet hands supported; Corning Gorilla Glass

Power

6700mAh / 13400mAh removable pistol battery, Built in 100mAh backup battery, supporting battery hot swap

Notification

Sound, LED indicator, vibrator

Interfaces

USB 2.0 Type-C, OTG, Type-C headphones supported

Card Slot

2 slots for PSAM card (optional); 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card

Audio

1 microphone; 1 speaker; 1 receiver

Keypad

1 power key, 2 scan keys, 1 user-defined key, 2 volume keys (+/-)

Sensors

Gravity sensor, proximity sensor, light sensor, geomagnetic sensor (optional), gyroscope (optional)

Communication

WLAN

802.11 a / b / g / n / ac, 2.4G / 5G dual-band

WWAN

2G: GSM (B2 / B3 / B5 / B8), 3G: WCDMA (B1 / B2 / B4 / B5 / B8), CDMA2000 ECDO: BC0, 4G: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B17 / B20 / B28A / B28B / B38 / B39 / B40 / B41

Bluetooth

5.0

Vo-LTE

Support

GNSS

GPS / AGPS, GLONASS, BeiDou, Galileo

Developing Environment

Operating System

Android 11/13

SDK

Chainway Software Development Kit

Language

Java

Tool

Eclipse / Android Studio

Performance

CPU

Octa-core, 2.3GHz

RAM+ROM

3GB + 32GB, 4GB + 64GB (Optional)

Expansion

Supports up to 256GB Micro SD (TF) card

User Environment

Operating Temp.

-20 °C to 50 °C / 4 °F to 122 °F

Storage Temp.

-40 °C to 70 °C / -40 °F to 158 °F

Humidity

5% RH - 95% RH (non condensing)

Drop Specification

Multiple 1.5m / 4.9ft. drops to the concrete across the operating temperature range

Tumble Specification

1000 x 0.5m / 1.64 ft. falls at room temperature

Sealing

IP65 per IEC sealing specifications

ESD

±15KV air discharge, ±8KV conductive discharge

Barcode Scanner

2D Imager Scanner

CM60; Zebra: SE4710

1D Symbologies

UPC / EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS etc.

2D Symbologies

PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX) etc.

Note

*This function is optional

UHF RFID

Engine

CM710-1 module based on Impinj E710

Frequency

865-868MHz / 920-925MHz / 902-928MHz

Impinj Gen2X

Supported

Protocol

EPCglobal Gen 2 (ISO18000-6C)

Antenna

Circular polarization; 5dBic

Output Power

1W (30dBm, +5dBm to +30dBm adjustable), 2W Optional (33dBm, for Latin America, etc.)

Fastest Read Rate

1300+ tags / sec (Circular Polarized)

Max Read Range

5dBi: 30m (Impinj MR6 tag, size 70 x 15mm), 32m (Impinj M750 tag, size 70 x 15mm), 33m (Alien H3 Anti-Metal tag, size 130 x 42mm); 4dBi: 22m (Impinj MR6 tag, size 70 x 15mm), 26m (Impinj M750 tag, size 70 x 15mm), 27m (Alien H3 Anti-Metal tag, size 130 x 42mm)

Note

* Ranges and rates depend on tags and environment

Fingerprint Recognition

Fingerprint

TLK1NC02

Note

* This function is optional

Camera

Front Camera

5MP

Rear Camera

Rear 13MP Autofocus with flash

NFC

Frequency

13.56MHz

Protocol

ISO14443A / B, ISO15693, NFC-IP1, NFC-IP2, Impinj Protected Mode Supported etc.

Chips

M1 card (S50, S70), CPU card, NFC tags etc.

Range

2-4cm

Note

* This function is optional
